Description

CNC Router For Acrylic Cutting

CNC Router For Acrylic Cutting Feature:

1. CNC router for acrylic is tool geometric frame type structure, durable, geometric design mechanics principle and durable.
2. Adopting rack gear transmission and high standard linear rail, Z axis use high precision screw ball
3. The Y axis transmission mode for stepping two-way drive, more efficient.
4. High-speed brushless frequency conversion water cooling spindle motor, with big sweaty, strong cutting, low noise,high frequency.

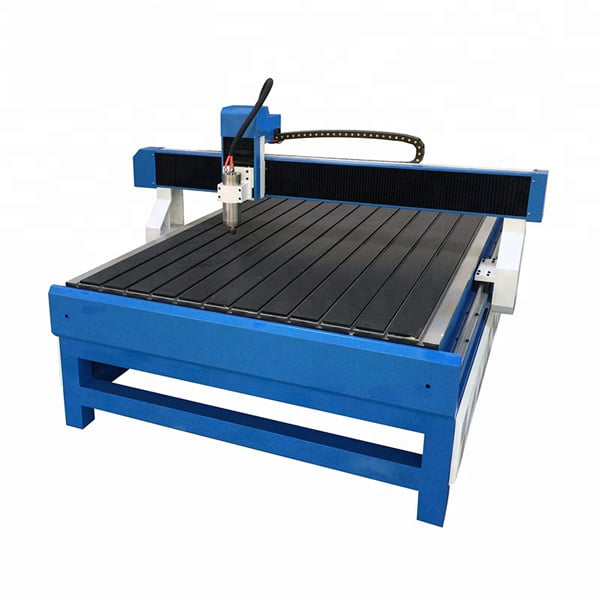

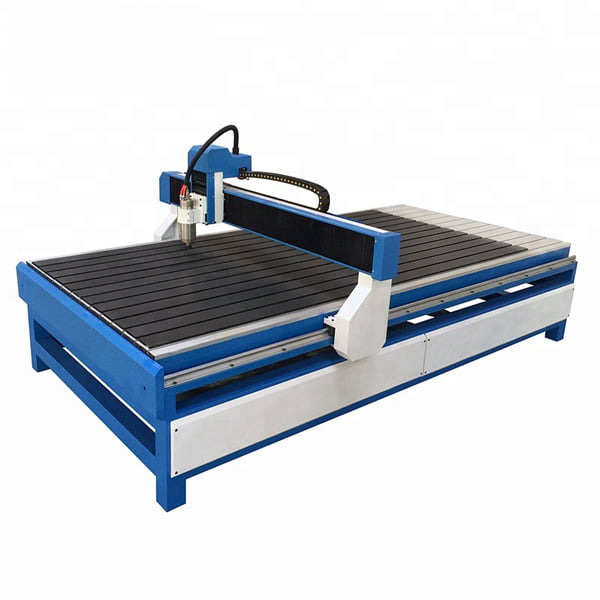

Machine Detail Pictures:

CNC Router For Acrylic Cutting

CNC Router for acrylic

CNC Router For Acrylic Cutting

Technical parameters:

Model: ZE-CR
Working area: 600(X)mm*900Y)mm*200(Z)mm
Machine Structure: Cast iron structure
Working table: Aluminum alloy T Slot with PVC protection layer
Cooling system: Water cooling system
Moving type: Gantry moving
Guide rail: Linear square guide rail, Hiwin, Taiwan, diameter 20mm
Transmission: Lead ball screw for XYZ-axis
Driving mode: Stepper motor and driver for XYZ-axis
Spindle motor: 2.2kw water cooling
Spindle speed: 0-24000rpm
Inverter: Sunfar
Voltage: AC 220V±10%, 50/60Hz, sinle phase
Traveling speed: >10000mm/min
Engraving speed: >6000mm/min
Machine accuracy: 0.03mm
Control system: NC Studio controller(standard);DSP or Mach3 4 axis control system for desktop computer for option
Suitable software: Artcam, Type3, Ucancam V9,etc
Running environment temperature: 0-45 ºC
Relative humidity: 30%-75%

Application samples:

1. Organic glass board, PVC,KY board, wood, stone plate,sheet metal,
2. Artificial synthetic board,acrylic etc plate type material processing.
3. The woodworking industry, the advertising industry, sheet metal products industries batch processing.

CNC Router For Acrylic Cutting

FAQs:

Q1: How to get the most suitable machine and best price?
please tell the material you want to working on, then we will recommend you the suitable models

Q2: How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAXIMUM size of these material ?( length ? Width ? Thickness ?)

Q3: Do you have the manual of machine?
Yes,we have detailed manual of machine and software sent with machine, also with machine operation videos.

Q4: If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.

Q5: How about your after-sales service?
We offer 24 hours on-line service , phone,skype or remote assistance.

Q6: How about your guarantee period?
Two years warranty period and life-long time Maintenance.

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
