Name: Serial Numbers Pneumatic Marking Machine For Metals
SKU: 40526
Availability: InStock

Description

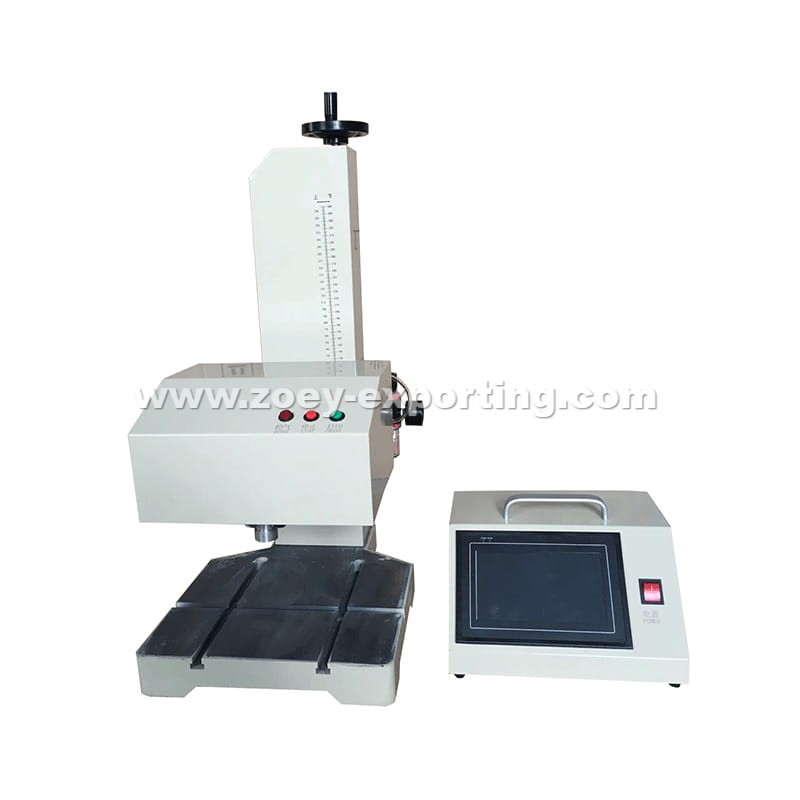

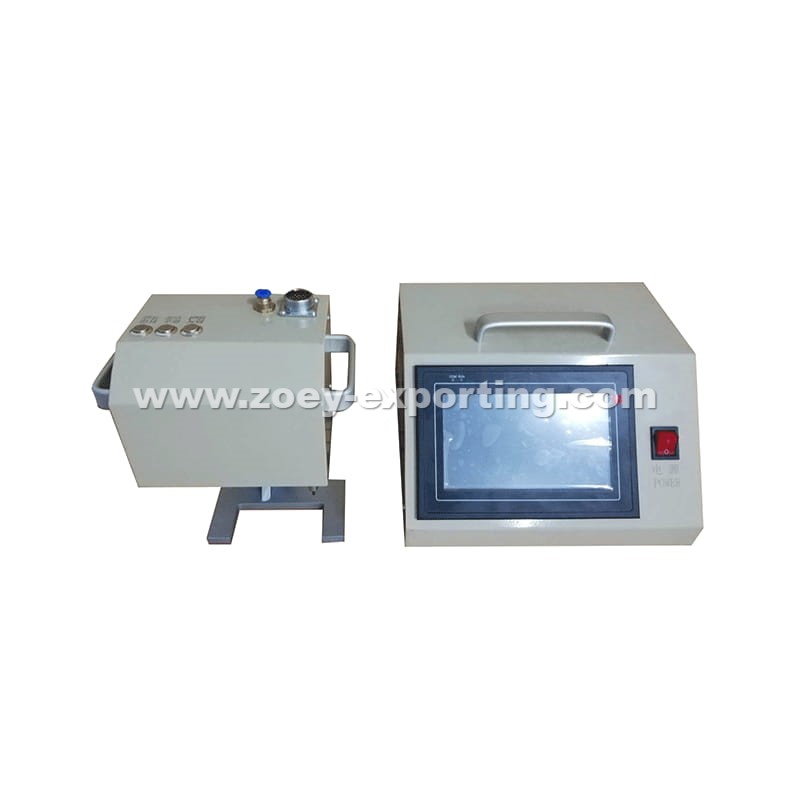

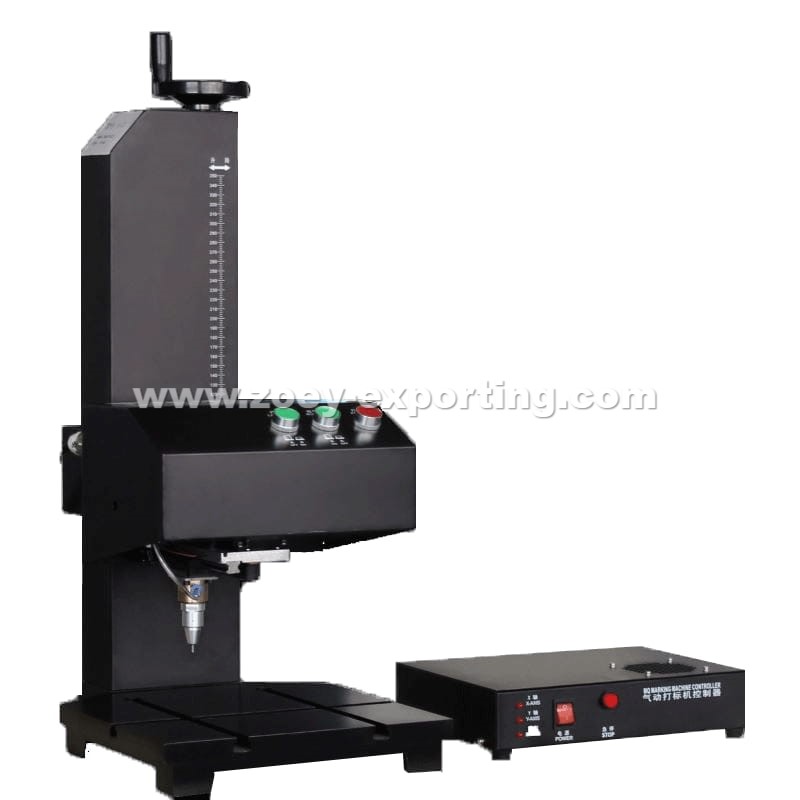

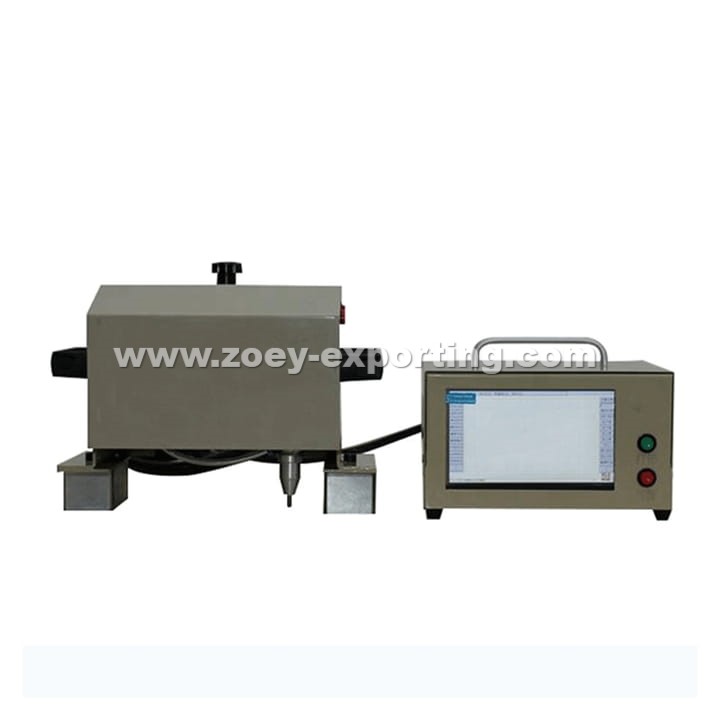

Serial Numbers Pneumatic Marking Machine For Metals

Pneumatic Marking Machine

Pneumatic Serial Number Marking Machine—Industrial-Grade Metal Identification**

Specifications
✔ **Marking Method**: Dot Peen/Pneumatic Impact
✔ **Marking Depth**: 0.1mm–1.2mm (adjustable)
✔ **Marking Speed**: 1–3 characters/second
✔ **Workpiece Thickness**: Up to 300mm (with extension kit)
✔ **Pneumatic Pressure**: 0.5–0.7 MPa (72–102 PSI)
✔ **Air Consumption**: 50–80 L/min
✔ **Power Supply**: 220V/110V, 50/60Hz
✔ **Weight**: 15–25 kg (portable design)

Key Features
✅ **Permanent Marks** – Withstands heat, corrosion, and abrasion
✅ **Multi-Line Capability** – Marks serials, logos, barcodes, QR codes
✅ **Adjustable Fixture** – For flat, curved, or irregular surfaces
✅ **Low Maintenance** – No consumables (stylus only)
✅ **CE Certified** – Complies with industrial safety standards

Compatible Materials
▸ Steel / Stainless Steel ▸ Aluminum ▸ Titanium ▸ Brass/Copper ▸ Hardened Metals (HRC≤50)

Standard Includes
- Pneumatic Marking Handpiece
- XYZ-Axis Adjustable Worktable
- 5-Pin Stylus Set (Ø0.8mm–2mm)
- English/Number Font Templates
- Air Hose & Quick Connector

Optional Accessories

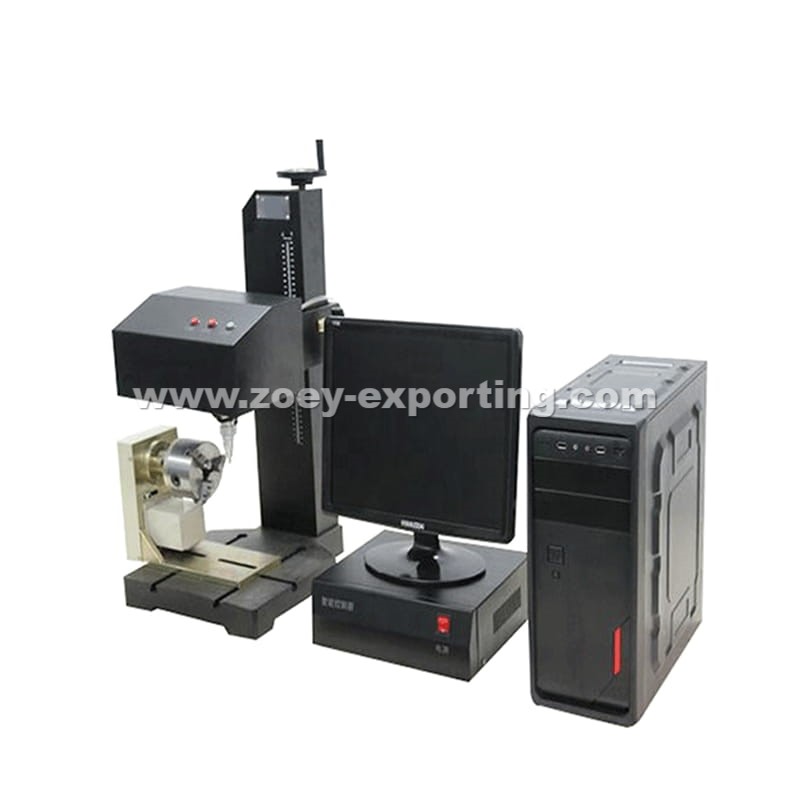

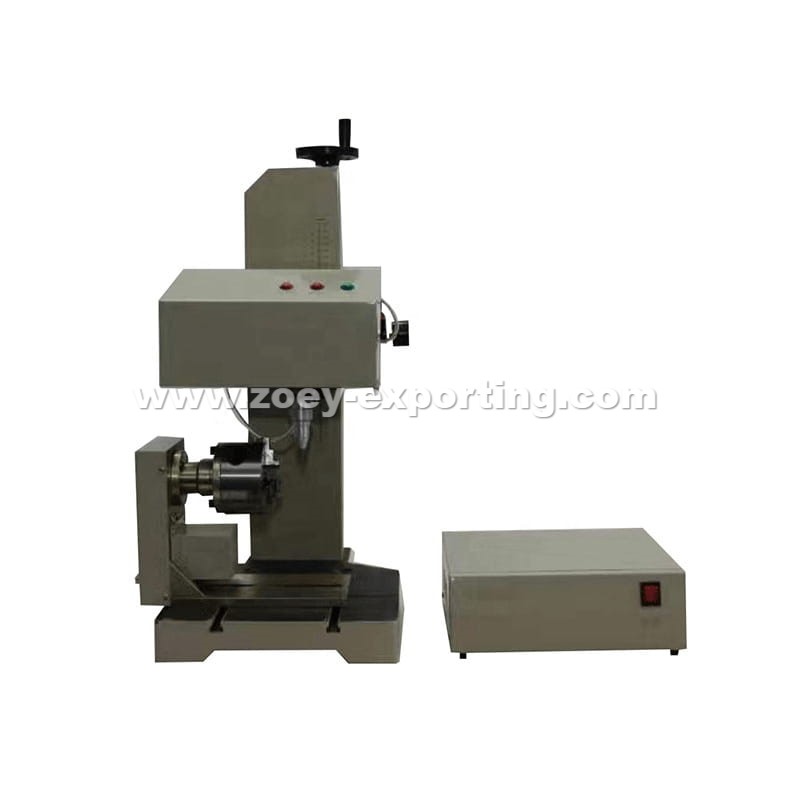

▪ Rotary Attachment (for cylindrical parts)
▪ Automated CNC Positioning System
▪ Depth Control Laser Guide
▪ Mobile Workstation Cart

Ideal For:
- Automotive (VIN, part IDs)
- Aerospace** (Traceability compliance)
- Tool Manufacturing** (Serialization)
- Military/Defense** (Permanent asset marking)

Why Choose Pneumatic Dot Peen Marking?

Pneumatic (dot peen) marking presses hard-metal stylus dots into the surface, producing deep, permanent marks that survive rust, wear, oil and high temperatures — ideal for VIN numbers, chassis codes, nameplates and industrial parts traceability. Unlike laser marking, it needs no consumables and keeps running cost near zero.

Best suited for

✔ Automotive and motorcycle frames, engines and gearboxes
✔ Steel, iron, aluminum and hardened metal workpieces
✔ Serial numbers, date codes, logos and 2D DataMatrix codes
✔ Workshops that need deep marks on rough or coated surfaces

Frequently Asked Questions

Q: Can it mark curved surfaces?
A: Yes, with the optional rotary fixture for round parts, or the floating stylus head handles slight unevenness.

Q: Does it require an air compressor?
A: Yes, it runs on standard shop compressed air — we can supply a matched compressor on request.

Order & Support

📦 What's included: Main machine, handheld unit/controller, power cables, user manual, spare protective lens, and tool kit.

🚚 Shipping: Worldwide delivery by DHL/FedEx/UPS express or sea/air freight. Standard models ship in 7–15 working days after deposit.

🛡️ Warranty: 1-year warranty with free replacement parts, plus lifetime technical support. CE certified; full inspection report before shipment.

💳 Payment: T/T, PayPal, Western Union, L/C for bulk orders.

💬 Get your free quote now: Tell us your application material and required power — our engineers reply within 10 working hours with a tailored solution.

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
