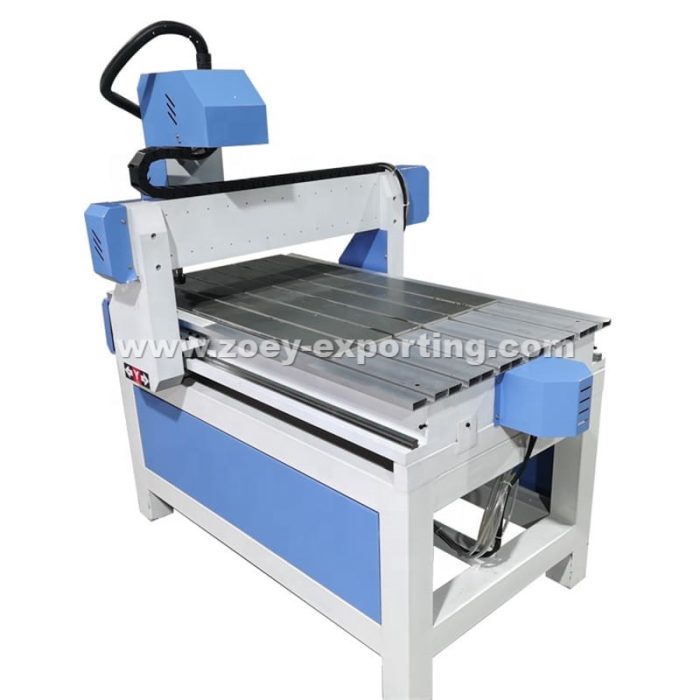

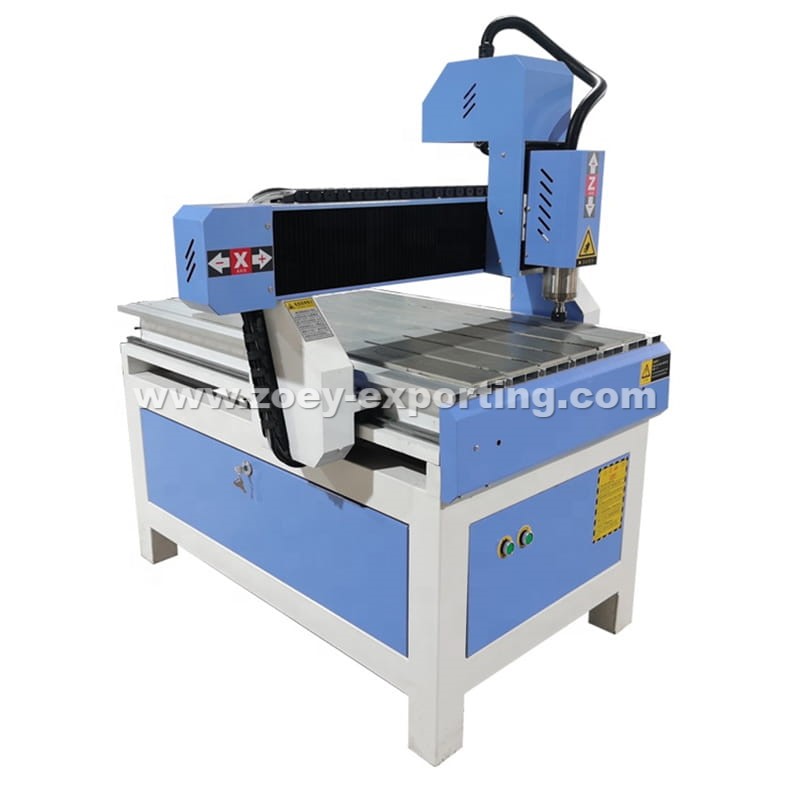

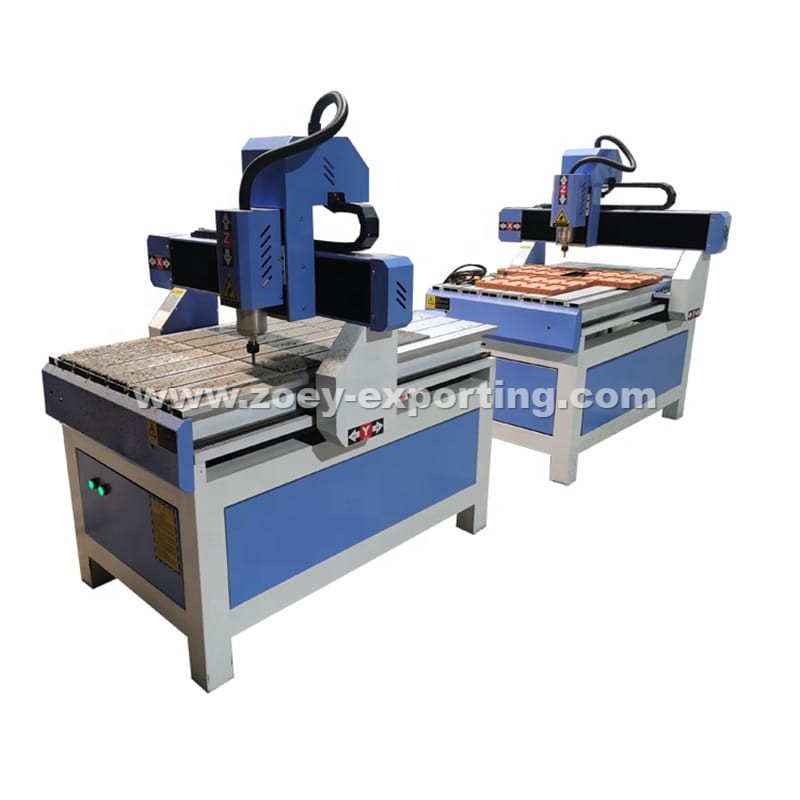

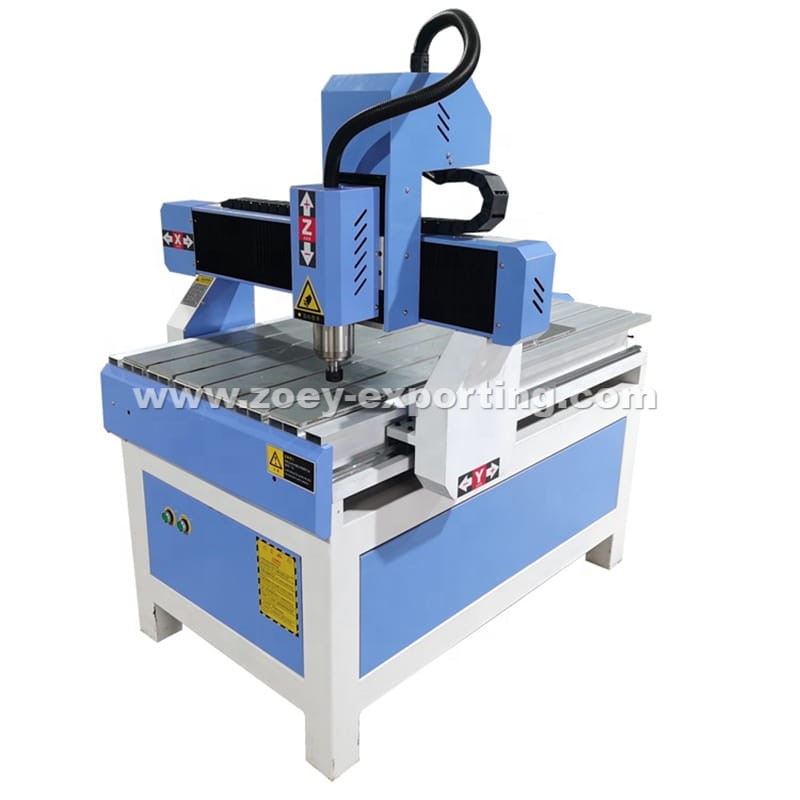

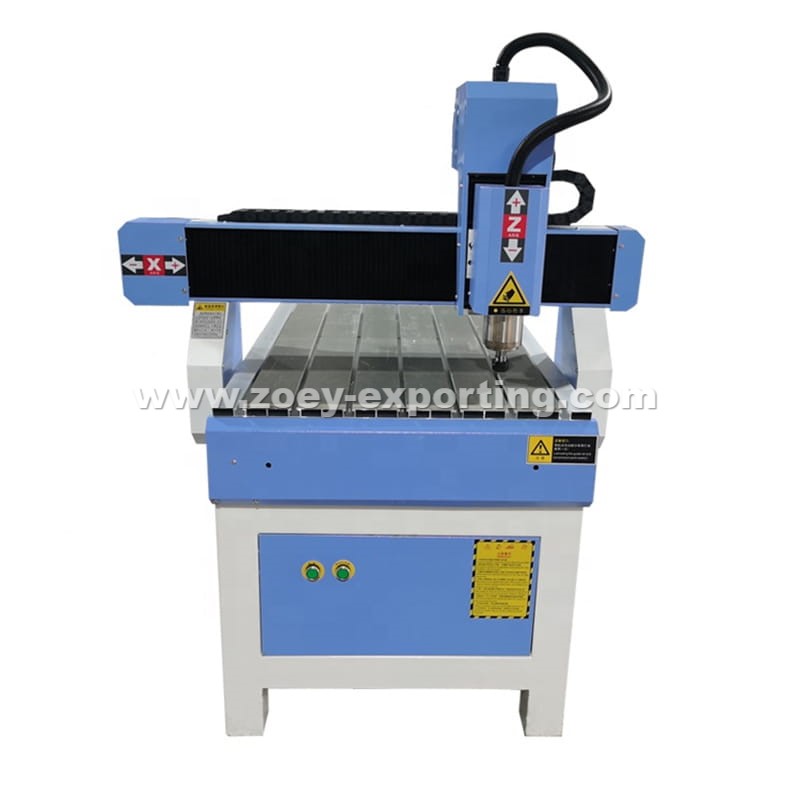

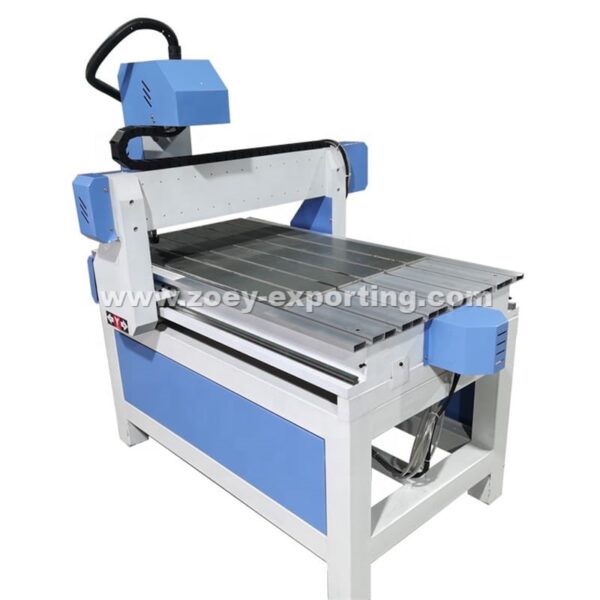

Woodworking 4 Axis Cnc Router Machine

This 4-axis CNC router machine delivers unmatched versatility for complex woodworking projects. Equipped with a high-power spindle and precision rotary axis, it handles intricate 3D carvings, cylindrical milling, and detailed relief work with ±0.02 mm accuracy.

Description

Woodworking 4 Axis Cnc Router Machine Features

True 4-Axis Control – Simultaneous X/Y/Z/A-axis movement for complex 3D carvings
High Torque Rotary – Perfect for cylindrical carvings (table legs, sculptures, moldings)
Industrial-Grade Rigidity – Heavy-duty welded steel frame with vibration damping
Dust Extraction Port – Integrated 4″ dust collector connection

Cnc Router Machine

Technical parameters:

Model	ZE-MC6090
X/Y axis working area	600*900mm
Z axis working area	150mm
Platform Size	635*1100mm
Max. Working Speed	30m/min
Max.Engraving Speed	20m/min
Type of Clamp	aluminium and pvc
Interface	USB
Resolution	0.01mm
Repositioning Accuracy	0.05mm
Command	G Code. U00. Mmg*. Plt
Software Surroundings	Windows98/2000/XP
Voltage	AC220V/50Hz
Spindle power	2.2kw
Driver&motor	stepper (servo optional)

Applications

Furniture 3D Carving
Sign Making & Relief Sculptures
Musical Instruments (Guitar Bodies, Violins)
Architectural Moldings

Cnc Router Machine

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
