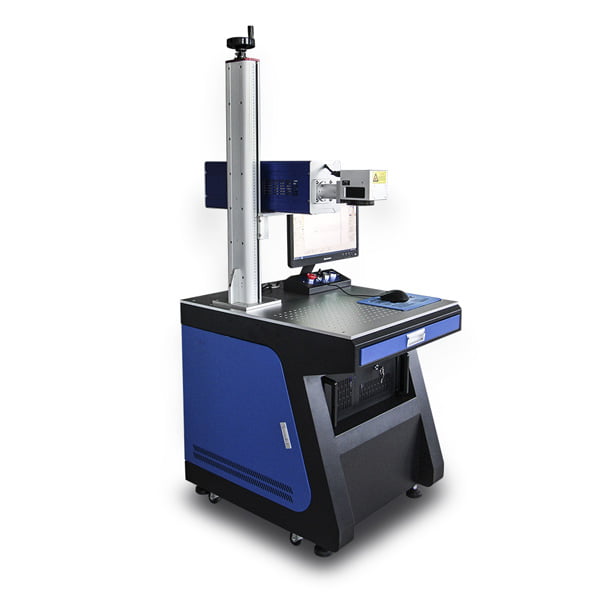

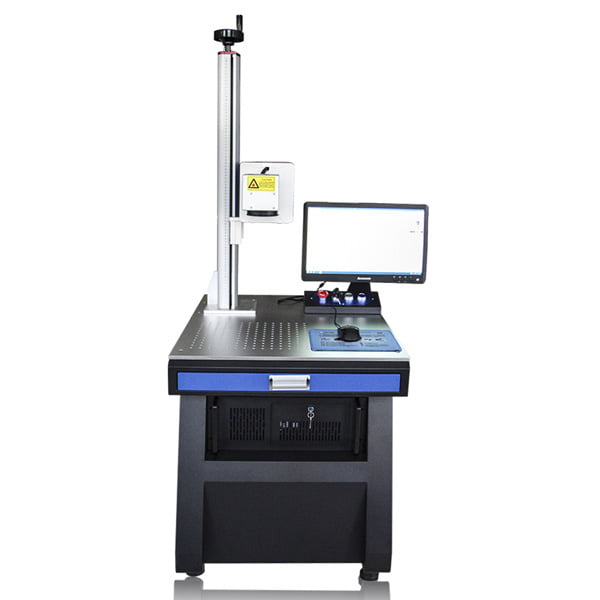

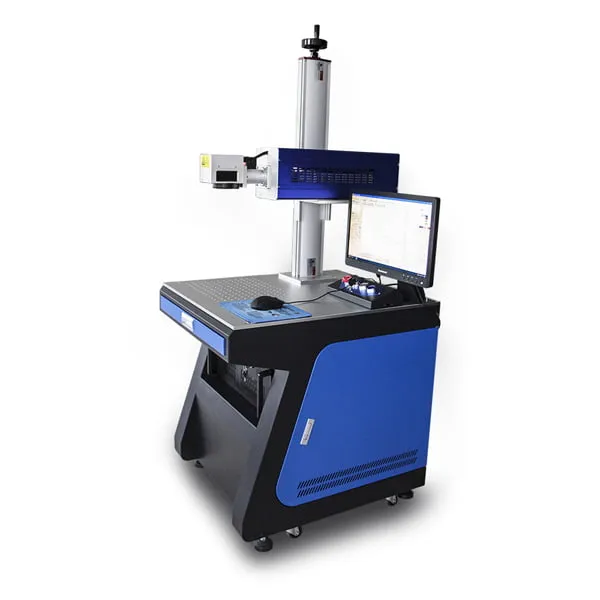

Co2 Acrylic Laser Marking Machine

1. Model no.: ZE-CL
2. Laser type: co2 laser with 10.6um
3. Laser power: 30watt, 60watt, 100watt
4. Software: EZCAD
5. Payment: T/T
6. Application: plastic, thin film, tinfoil, timber, glass, PVC, ABS, IC and so on.

Categories: Co2 laser marking machine, Laser machine

Description

Co2 Acrylic Laser Marking Machine Features:

1. It is compact structure and easy to operate.
2. Perfect choice for home shop, DIY, sign maker, stamp making, arts and craft making,package industry and so on.
3. High precision and fast speed.Marking depth is controllable optionally.
4. Wide application.It can marks most non-metals.
5. No consumption and pollution.
6. The marking lines are clear,it can withstands heavy wearing.

Machine Main Parts:

1. The Co2 galvo lasers has superior laser beam and uniform power density, The laser power output is stable.
2. Adopt the advanced operating system with fast date processing speed and multi-functional operation interface.
3. It can work with quick speed, small volume, good stability.
4. High efficiency for photoelectric conversion, compact in structure.

Co2 Acrylic Laser Marking Machine

Technical parameters:

Model: ZE-CL
Outpu laser power: 30watt, 60watt, 100watt
Laser wavelength: 10.6um
Laser head: high speed galvo head
Software: Ezcad
Marking area: 110x110mm(optional)
Laser type: RF Co2 metal tube
Laser Tube life Time: 20000 hours
Laser repetition frequency: ≤50KHZ
Marking speed: 7000mm/s
Laser wave-length: 10.64um
Marking depth: 0.01mm ~0.3mm
Min.line width: 0.015mm
Min.character size: 0.4mm
Repetition accuracy: ±0.01mm
Cooling mode: Air cooling
Total power consumed: ≤800W
Power supply: 110V/220V (50HZ-60Hz)

Application samples:

1. Low consumables, non-toxic and no pollution, suitable for marking the non-metal materials,
2. Such as paper, plastic, thin film, tinfoil, timber, glass, PVC, ABS, IC and so on,
3. The material like food, beverage, medicine, tobacco, leather, package, building materials, cosmetic and electron component.

Co2 Acrylic Laser Marking Machine

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
