Name: Engine Number Pneumatic Marking Machine | Get Factory-Price Laser Equipment - Free Sample!
Price: 1000.00 USD
Availability: InStock

Description

Engine Number Pneumatic Marking

Engine Number Pneumatic Marking Machine Features:

Name:Pneumatic Marking Machine
Application:Engine Marking Machine
Advanced USB interface control technology
Taiwan HIWIN guide rods
Automatic System Trouble Analysis
Japan SMC high-frequency electromagnetic valve
Big torque, small angle stepper motor
High precision power driver
ThorX6 marking software
7″LCD touch screen controller

Advantage:

Our portable dot marking machines are fully programmable and compact designed to identify
large or heavy components which are not easy to move.
The portable stylus pin marking range includes robust and powerful machines perfectly suited
to heavy duty environment
Lightweight, ergonomic hand-held machine allowing the marker to be taken to the part
Pneumatic dot peen marking styluses, besides normal marking inquiry, there are deep marking
stylus (0.1~1mm) and high hardness material (HRC60) marking.
Multiple choice of controller: Mini PC based controller, small size, easy to move and light weight;
7″LCD touch screen controller, insert software, no need of PC.

Software:

Multi-languages, serial No., Arabic numerals, arbitrary figure, incrementing serial No., graphics,
VIN code, time, date, barcode reading marking, ticket, dot matrix, 2D code(two-dimension code),
circumferential parts marking and connected to database marking.
Available in a variety of languages (including English, French, German, Spanish, Swedish, Finnish,
Italian, Portuguese, Cyrillic and Czech), the software also contains features such as serial
numbering, date time marking and password protection.Support multiple graphics and
fonts,compatible with AutoCAD, CorelDraw.Flexible and user-friendly software, compared with
the same numbers.Database: Marking report available, special fonts and graphics editor.

PC controller and LCD touch screen difference:
7″LCD Touch Controller is used to manage and to monitor the marking head independently,a
separate unit to ensure it is protected from the mechanical shock loading of the marking
operation.Integrated marking software,marking files can be entered or edited directly with the
user friendly controller interface.It is ideal for stand alone marking systems,NO PC
required.Thanks to its USB plugs, marking files can be upload/download from a PC to the
controller.

1. Create file and save it
2. User-friendly software interface,simple to program
3. Built-in 7″LCD color touch screen, large embedded graphical
display,clearly marking preview

USB controller,with ThorX6 software which is a user friendly windows based program
for our marking system. It enables to secure automate and simplify to the maximum the user
work, communication via RS232 and 2USB.

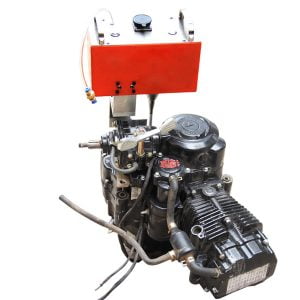

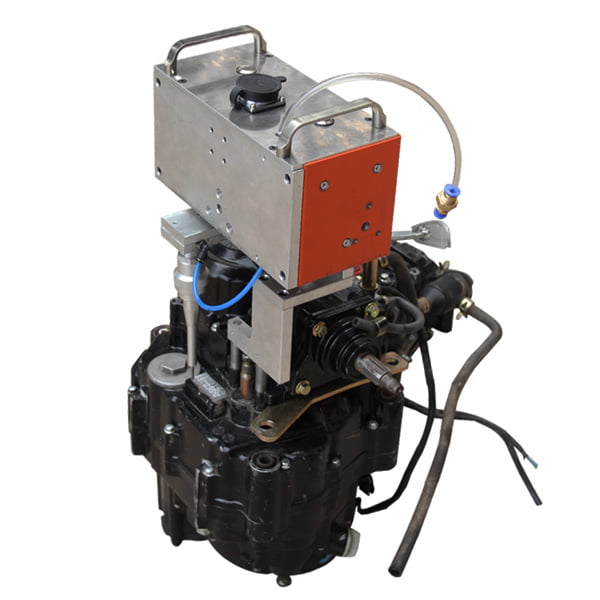

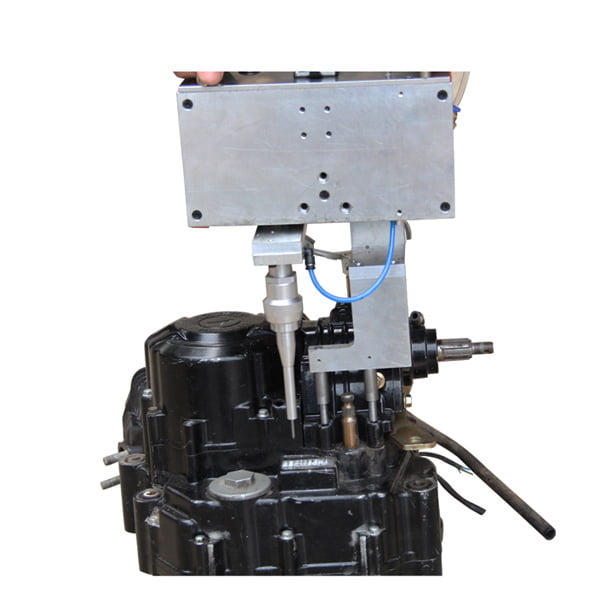

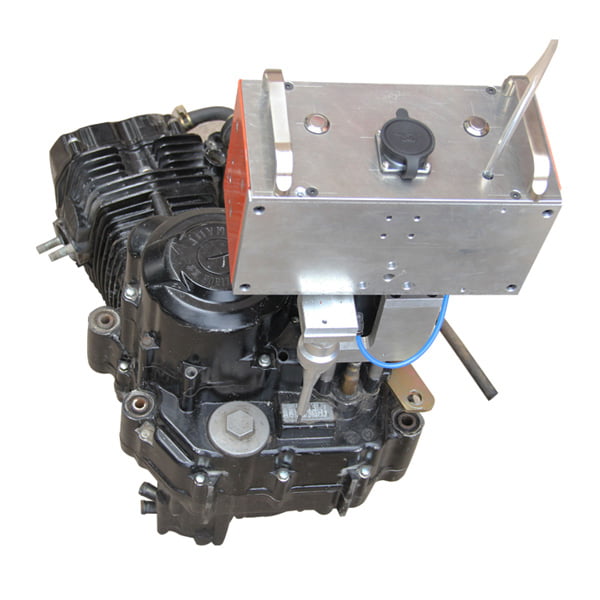

Machine detail pictures:

Engine Number Pneumatic Marking

Engine Number Pneumatic Marking machine

Technical parameters:

Model: ZE-DM1
Marking speed: 2-5 characters(2x2mm)/s
Stroke Frequency: 300times/s
Marking depth: 0.01 to 1mm (Vary to the material)
Marking contents: Alphanumeric info, Data Matrix or dot matrix 2D codes,
Shift codes, Barcode, Serial Number, Date, VIN Code, Time, Letter, Figure, Logo, Graphics and etc.
Stylus Pin Hardness: HRA92/HRA93
Marking area: 80x40mm,130x30mm,140x80mm,200x200mm
Dimensions: 320x420x740mm
Marking materials: below HRC60 metallic and nonmetallic materials ,
above HRC60 need special stylus
Repeat accuracy: 0.02-0.04mm
Power: 300W
Work voltage: AC 110V 60HZ or AC220V 50HZ
Compressed Air( Pneumatic Air): 0.2-0.6Mpa
Connection: USB and RS-232
Controller: a. 7″LCD touch screen controller b. windows 7&windows XP
Power type: a.Pneumatic b.Electric
Marking directions: up, down, left, right, and the circular arc surface marking
Gross weight: 15KG

Application samples:

1. Any character size 1mm to 100 mm
2. Serial number (value, tee, elbow, batch, shift)
3. Arabic numerals Alphanumeric (Figure& Letter)
4. Graphics
5. VIN code
6. Time variables (year, month, week, day, shift)
7. Date& Time
8. Barcodes & Reading
9. Ticket number
10. Date Matrix/2D codes/ Matrix size: 5 x 7, 9 x 13 and continuous line
11. Logos marking
12. Special symbols
13. Database connection marking

Engine Number Pneumatic Marking

FAQs:

1. What if you don’t know how to use the machine?
We have a full set of teaching videos, start with a zero experience, also can provide training
through teamviewer or other software, video calling, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn

2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2 or 3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code

3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one
