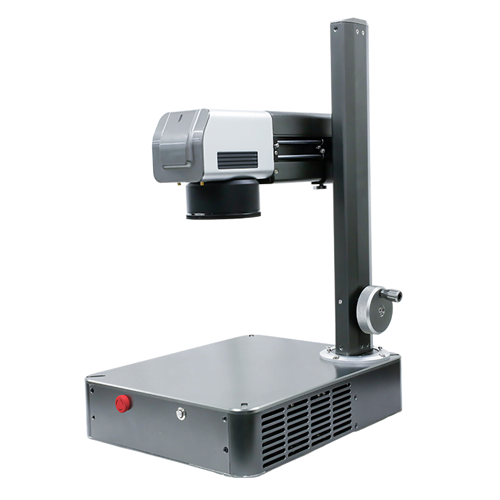

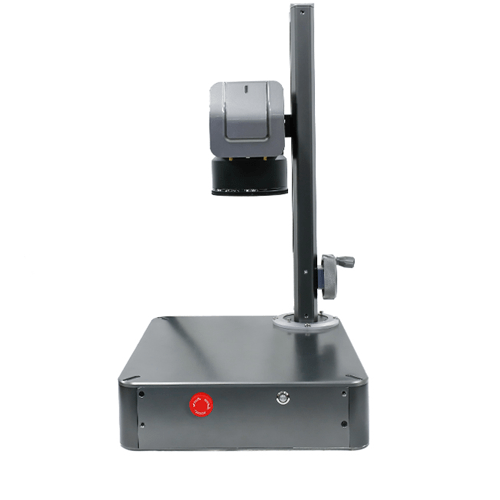

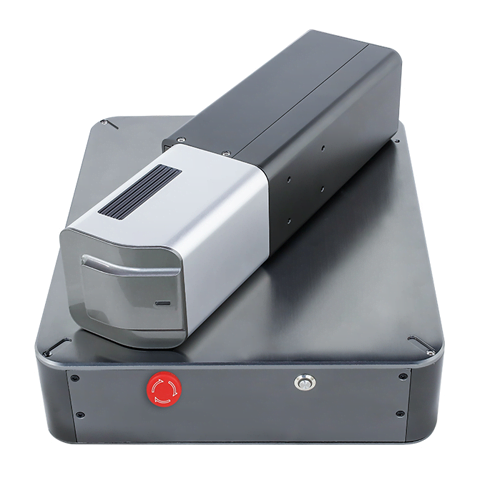

Mini Type Fiber Laser Marking Machine 20W

Mini Type Fiber Laser Marking Machine 20w Features:

1. This smart mini type Laser Marker For Steel as beautiful appearance, compact structure and small floor space.
2. Laser light pulse of the small laser engraving machine is narrow, the peak power is high, and the repetition frequency range is wide.
3. Tabletop laser engraving machine has low power consumption and high usability.
4. This smart mini model fiber Laser Marking machine For Steel is easy to operate with high reliability and long service life.
5. There is no consumables or wearing parts of this tabletop laser engraving machine.
6. small laser engraving machine will not cause shadows and virtual breaks when processing special materials.
7. The column of the Laser Marker For Steelcan be rotated 360° to facilitate multi-angle marking of objects that are not easy to move.

Technical parameters:

Model: ZE-FL
Laser Wavelength: 1064nm
Laser reource: Maxphotonics
Minimum Line Width: 0.1mm
Minimum Character: 0.4mm
Repeat Precision: ±0.01mm
Engraving Line Speed: ≤7000mm/s
Average output power: 20W
Frequency adjustable range: 30-60KHz
Pulse Width: 80-140ns
Pulse adjustment range: 5-100%
Operating Voltage: 100-240VAC
Fiber length: 1.5m
Cooling : air cooling
Power supply: 220v, 110v

Top brand fiber laser source:

1. The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus/ Jpt/ Max are all the industrial marking and micromachining laser.
2. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter.
3.It can be widely applied in the
fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude.

High speed galvo laser head

1. Sino-galvo high-speed galvanometer scanner.
2. Professional and long life time.
3. With more precision for laser beam
4. Two red dots for easier focus

High light transmittance optical lens

1. High light transmittance optical lens
2. With different size from 70x70mm ~300x300mm.
3. wavelength or other brand

Ezcad control board and software

1. EzCad Card enables real-time control of scan system and lasers over a standard USB host interface.
2. Customers can integrate complete machinery easily over the EzCad Card due to its compactness and I/O capabilities.
3. Fast response times and short execution cycle times make the EzCad Card perfectly suitable for high performance applications.
4. It can load marking file via a removable MMC memory card.

Application Samples:

1. Widely used in integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic.
2. Aerospace components, all kinds of auto parts, household appliances, hardware tools, dies, wire and cable, food packaging, jewelry.
3. Military things graphics and text markup, mass production line and homework.

FAQs:

1. What if you don’t know how to use the machine?
We have a full set of teaching videos, start with a zero experience, also can provide training
through teamviewer or other software, video calling, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn

2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2 or 3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code

3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one
