Portable Fiber Laser Marking Machine 30W
Original price was: $3,500.00.$2,500.00Current price is: $2,500.00.
1. Model no.: ZE-FL
2. Marking area: 110x110mm as standard
3. Laser power: 20watt, 30watt
4. Software: EZCAD
5. Payment: T/T(optional)
6. Application: gold and silver ring, all Metals, stainless steel, hard plastic, etc.
Portable Fiber Laser Marking Machine 30W 20W Features:
1. Mini laser marking machine is the integrated design,compact size.
2. Low consumption,long life-span,high efficiency.
3. Free from maintenance,convenient to be installed and taken away.
4. The weight of the machine is only 25KG,
5. The whole machine is of easy operation,and one key to control the power on
6. With strong extensive ability,the equipment can be available in all kinds of working environment.
7. And precise light spot,it is no need of consumable items.
8. The scanning galvanometer is imported with original packaging,
9. With compact size and fast speed,it is of precise location,
10. Its software operation is simple and function is strong
Technical Parameters:
Model: ZE-FL
Laser power: 20W,30W
Lens size: 110x110mm
Wavelength: 1064nm
Repeatability: ±0.01mm
Beam quality: ﹤1.5
Marking speed: ≤7000mm/s
Smallest mark characters: about 0.3mm
Engrave depth: ≤0.5mm depend on material
Marking line width: 0.03mm
Cooling system: Air cooled
Indicate light: Red light
Support format: AI,PLT,JPG,etc.
Voltage-: AC/220V/110V/60HZ
Weight:Less than 30KGÂ Â Cooling mode: Air cooling
Top brand fiber laser source:
1. The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus/ Jpt/ Max are all the industrial marking and micromachining laser.
2. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter.
3.It can be widely applied in the
fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude.
High speed galvo laser head
1. Sino-galvo high-speed galvanometer scanner.
2. Professional and long life time.
3. With more precision for laser beam
4. Two red dots for easier focus
High light transmittance optical lens
1. High light transmittance optical lens
2. With different size from 70x70mm ~300x300mm.
3. wavelength or other brand
Ezcad control board and software
1. EzCad Card enables real-time control of scan system and lasers over a standard USB host interface.
2. Customers can integrate complete machinery easily over the EzCad Card due to its compactness and I/O capabilities.
3. Fast response times and short execution cycle times make the EzCad Card perfectly suitable for high performance applications.
4. It can load marking file via a removable MMC memory card.
Application Samples:
1. Electronic and communication products, IC products, electric lines, cable computer components.
2. Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
3. Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.
4. Dishware ,food ,drinking,smoking and alcohol,etc.

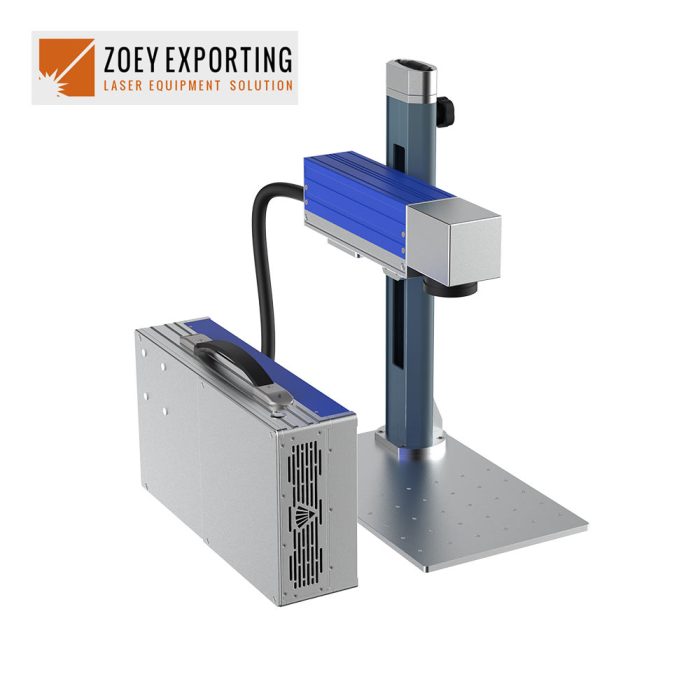

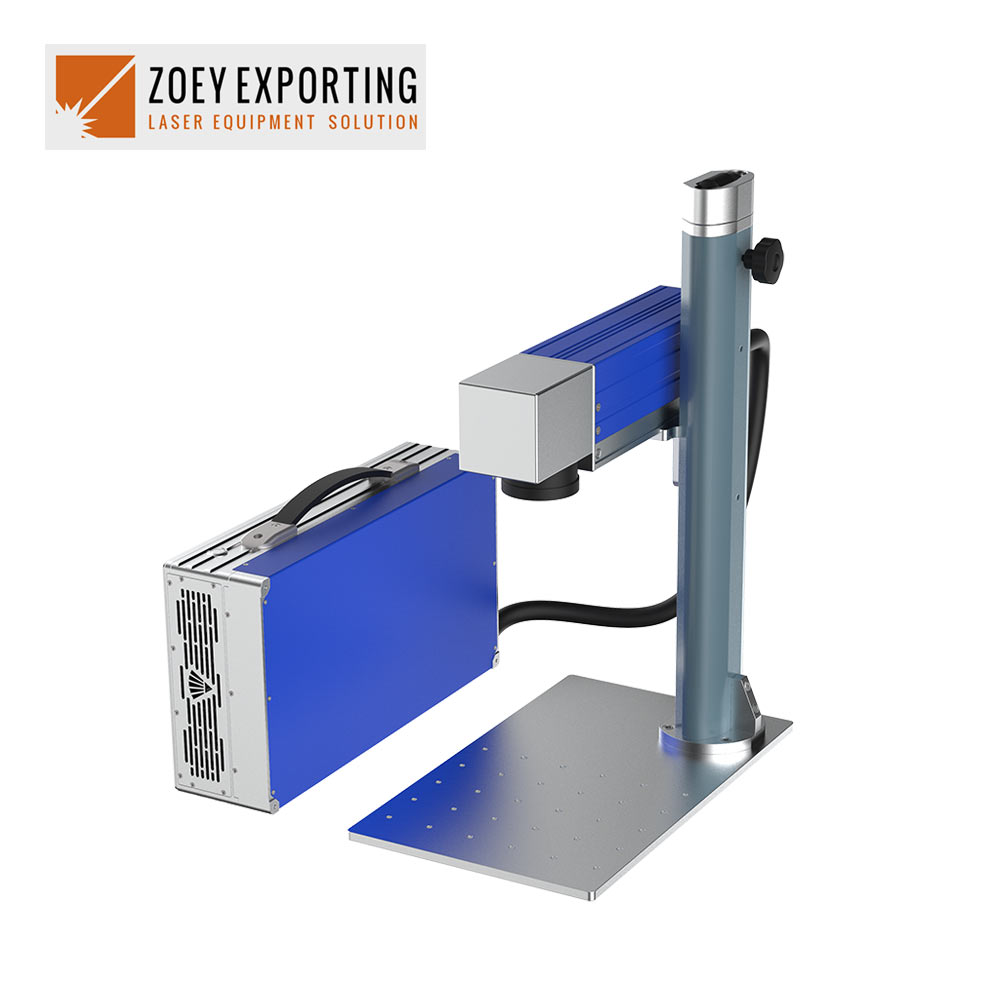

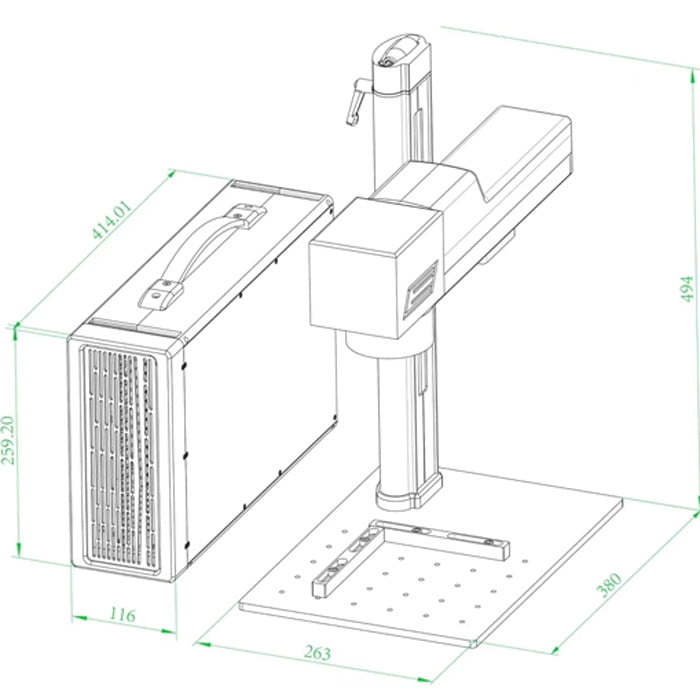

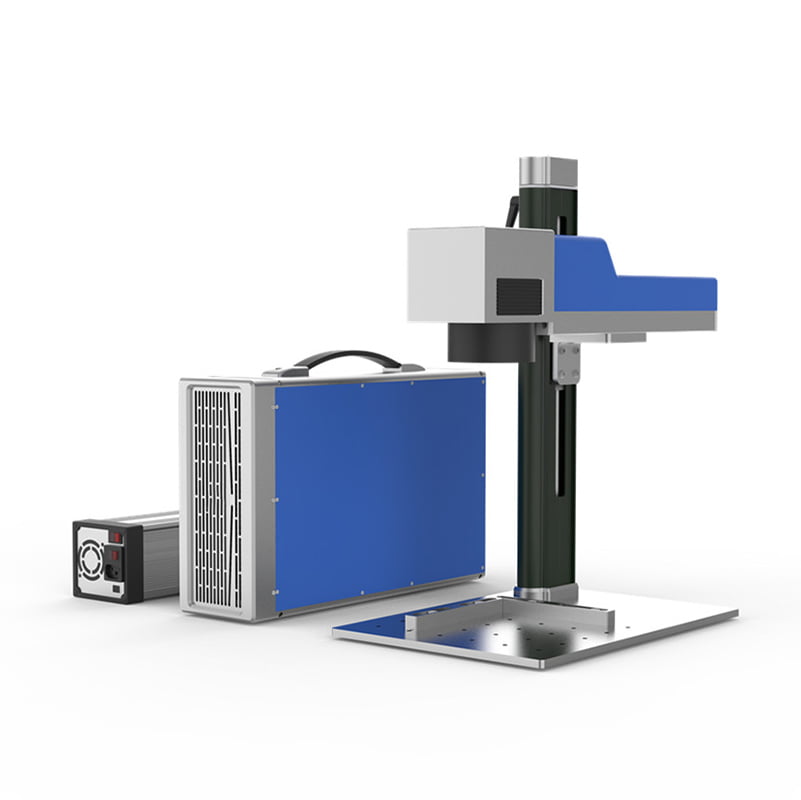

Machine pictures:
Optional parts - Rotary attachment:
The laser marking machine rotary is for round shape products marking and engraving
FAQs:
A: You can import any jpg, bmp, plt, dxf and png files that you want.
2. Q: What’s the computer requirements?
A: Smart machines are compatible with Windows® XP/7/8/10 both 32-bit and 64-bit operating systems. The file transfer is performed via USB connection to the computer at speeds up to 500 KB per second or via USB flash drive direct transfer.
3. Q: Is there any laser machine maintenance?
A: All of the configurations of Smart laser marking machine is free-maintenance.
4. Q: How does the Smart machine working?
A: A laser machine works by directing a very powerful laser beam at a precise focal length onto a variety of materials. Depending on the speed and power set, the laser beam will either remove the surface of the material or cut through it.
5. Q: What are the consumables?
A: The Smart laser marking machine if free of maintenance and there are no consumables.
