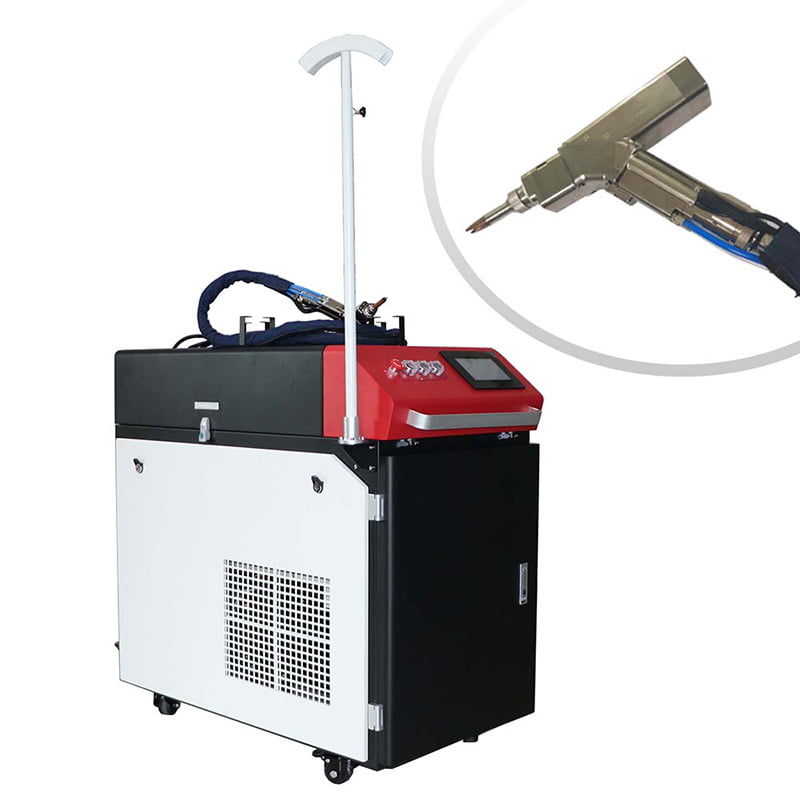

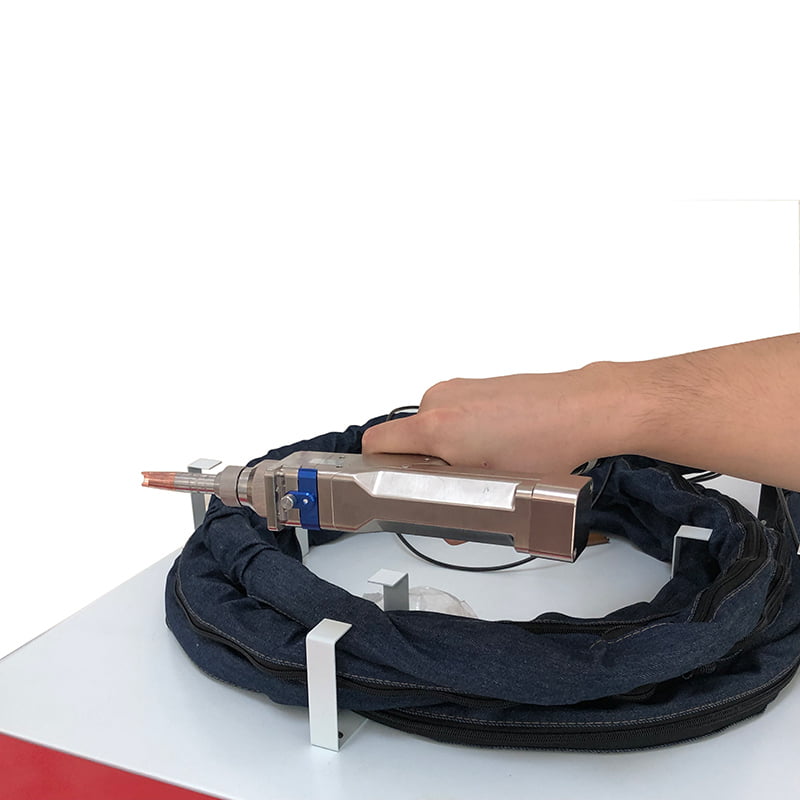

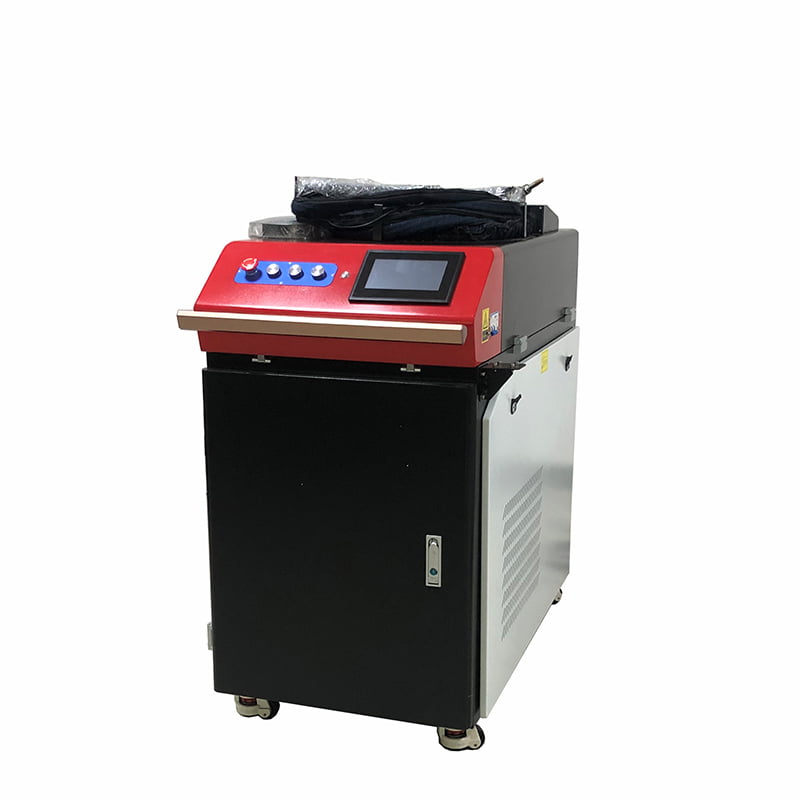

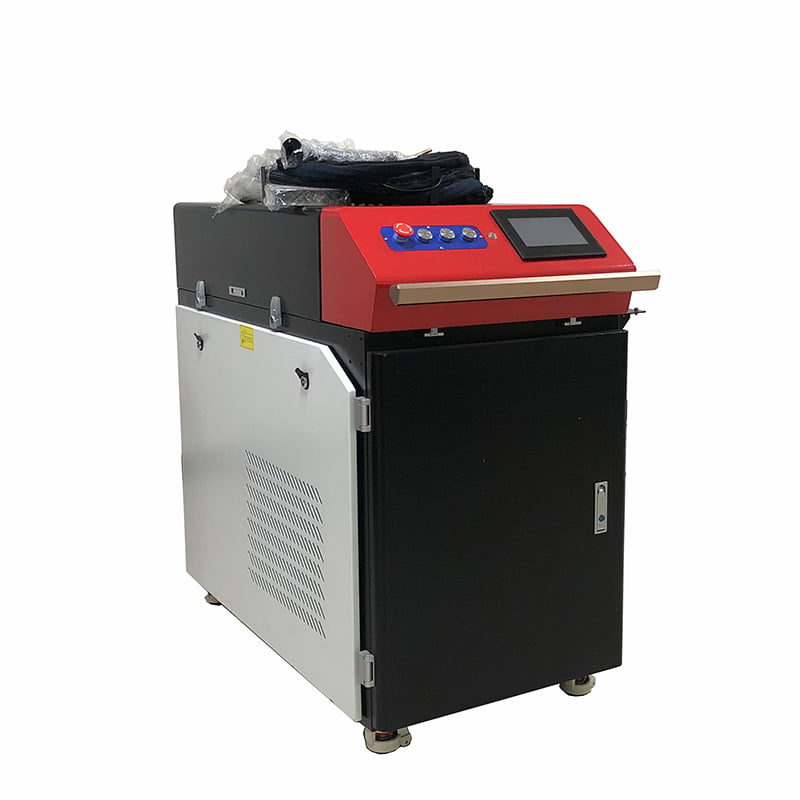

Handheld Fiber Laser Welder 1.5KW

1. Model no.: ZE-LW
2. Laser type: fiber
3. Laser power: 1KW, 1.5KW, 3000W
4. Cooling: water cooled
5. Payment: T/T(optional)
6. Application: gold and silver ring, all Metals, stainless steel, etc.

Categories: Handheld laser welding machine, Laser machine

Description

Handheld Fiber Laser Welder 1.5KW Features:

1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2. High cooling rate, which can weld fine weld structure and good joint performance.
3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5. No consumables, small size, flexible processing, low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

Machine Details:

Handheld Fiber Laser Welder 1.5KW

Technical parameters:

Model: ZE-LW
Power: 1000W, 1500W, 3oooW
Wavelength: 1064nm
Laser frequency: 50Hz-5KHz
Adjustable power range: 5-95%
Beam quality: 1.1
Optimal operating environment: Temperature 10-35 ° C, humidity 20% -80%
Electricity demand: AC220V/110V
Output fiber length: 5/10/15m (Optional)
Average consumed power: 2000W, 4000W
Pulse Width: 0.1-50ms
Focal Spot Diameter: 0.2-3.0mm
Laser type: Nd:YAG
Cooling water temperature: 20-25 ° C
Cooling method: Water Cooling

Application samples:

1. Handheld laser welder is suitable for welding of gold, silver, titanium, nickel, tin, copper,
2. Aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals,
3. Aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.

Handheld Fiber Laser Welder 1.5KW

FAQs:

1. How much thickness can you weld?
This depends on the welding material and welding requirements, our penetration depth can reach 4.5.
In this case, the maximum thickness can be welded up to 7-8, and the specific welding must be done at the factory for proofing.

2. What is the maximum weld width?
2mm or less, our wire feeder supports 2mm welding wire.

3. How many watts do your laser welding machines?
1000w,1500w,2000w with Raycus, Jpt and Max

4. What materials can be welded?
Stainless steel, carbon steel, galvanized sheet, aluminum sheet.

5. Can you weld the effect of fish scales?
Yes. When you buy the machine, our engineer will teach you how to weld the fish scale effect.

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
