Laser Marking Machine For Glass UV 5W 3W

1. Model no.: ZE-UV1
2. Laser type: 355nm uv laser
3. Laser power: 3watt, 5watt
4. Cooling: air cooled
5. Payment: T/T(optional)
6. Application: gold and silver ring, all non-Metals, stainless steel, etc.

Categories: Uv laser marking machine, Laser machine

Description

Laser Marking Machine for Glass

Laser Marking Machine For Glass UV 5W 3W features:

1. Perfect laser beam quality, smaller focused spot size, ultra-fine marking, and the minimum character can up to 0.2mm.
2. 355nm outgoing wavelength makes it small heat-affected area without thermal effects and burning problem.
3. Motorized up down table, auto focusing, and rotating functions are optional.
4. High speed and high precision.
5. Stable working performance without consumable material, small size and easy operation.
6. It can greatly reduce the mechanical deformation of material,
and reduce heat effect on work piece.
7. The 355nm wavelength UV laser has extemely small size spot, more precision.

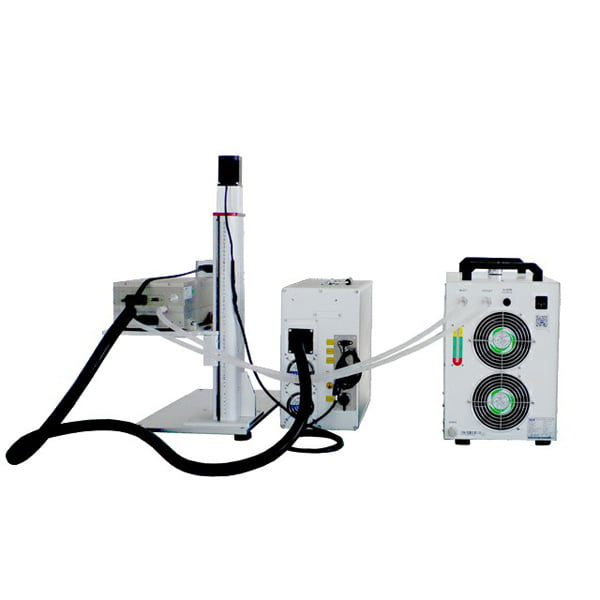

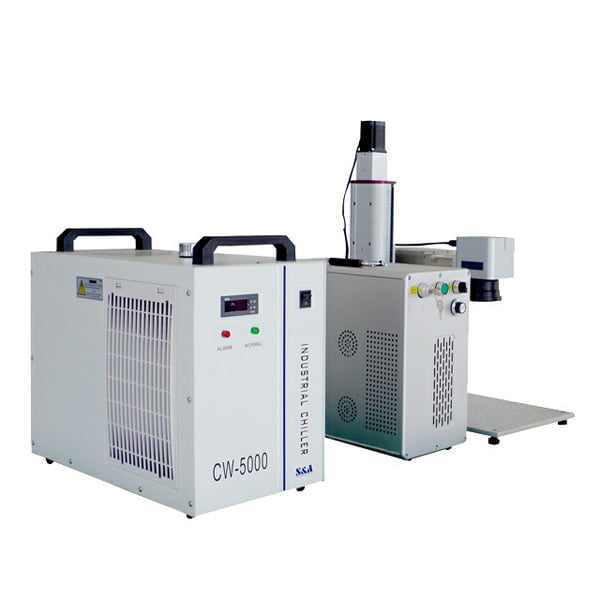

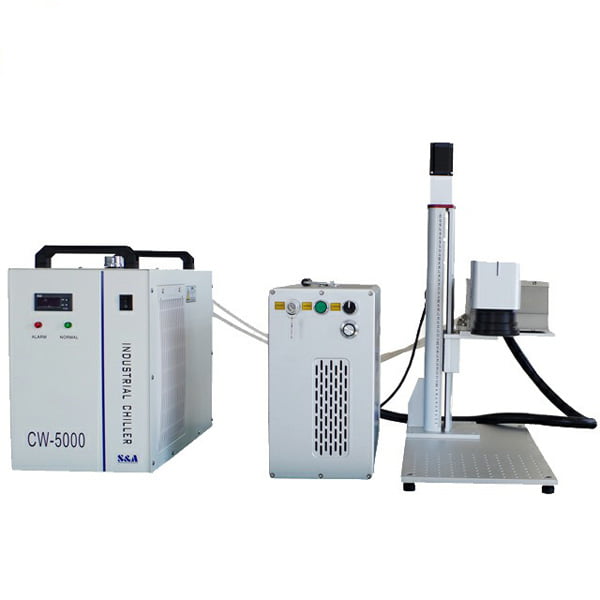

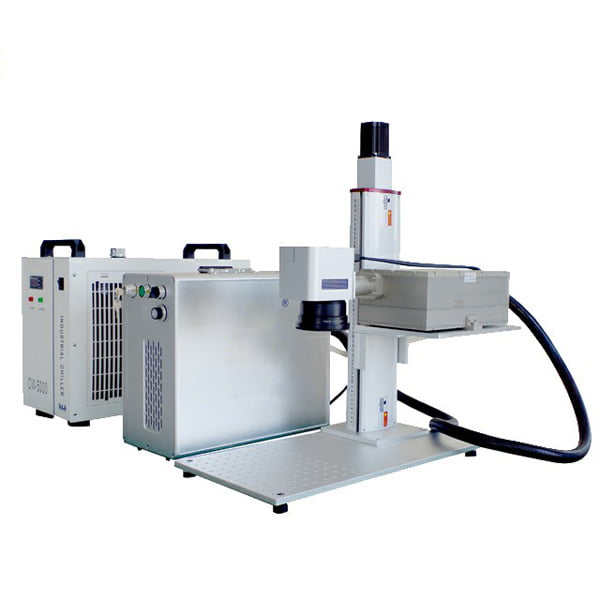

Machine Details:

1. 355nm uv laser source
2. High speed galvo laser head
3. High light transmission lens
4. More stable water chiller

Laser Marking Machine For Glass

Technical parameters:

Model: ZE-UV1
Lazer type: uv laser
Wavelength: 355nm
Laser power: 3W, 5W
Average output power: >3W@50kHz>5W@50kHz
Software: EZCAD/Touch screen operation
Single pulse energy: >75μJ@40kHz>125μJ@40kHz
Repetition frequency: 20kHz~200kHz
Pulse width: <22ns@40kHz<18ns@50kHz
Maximum speed: 7000mm/s
resolution: 0.01mm
Re-positioning precision: 0.03mm
Marking range: 110*110mm
Minimum line width: 0.01mm
Minimum height of characters: 0.2mm
Cooling way: Water cooling
Laser power supply: 0.8KW/AC220V/50Hz
Environmental requirements: 10 ~ 35 ° C, 90% or humidity

Application samples:

1. Steel and Stainless steel
2. Bare and Cast Aluminum
3. Gold and Silver
4. Copper, Glass cup
5. Titanium,Wood
6. Plastics, all non-metals

FAQs:

Q1. How to get the most suitable machine and best price？
First, you need to tell us what material or product you want to mark.
Then we will recommend you the best model.

Q2. Quality Control？
The whole production procedure will be under regular inspection and strict quality control.
And all machine approval with CE & FDA

Q3: How is the shipping method?
As per your actual address, we can effect shipment by sea, by air, by truck or railway.
The customers can choose the most suitable shipping way for them.

Q4: This model is not suitable for me, do you have more models available?
Yes, it will need you to send us the samples to test for you.
We can use the following machine to test for you, and choose the best effect
portable fiber laser marking machine,
co2 laser marking machine,
enclosed fiber laser marking machine,
3D fiber laser marking macine,
UV laser marking machine and so on.

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
