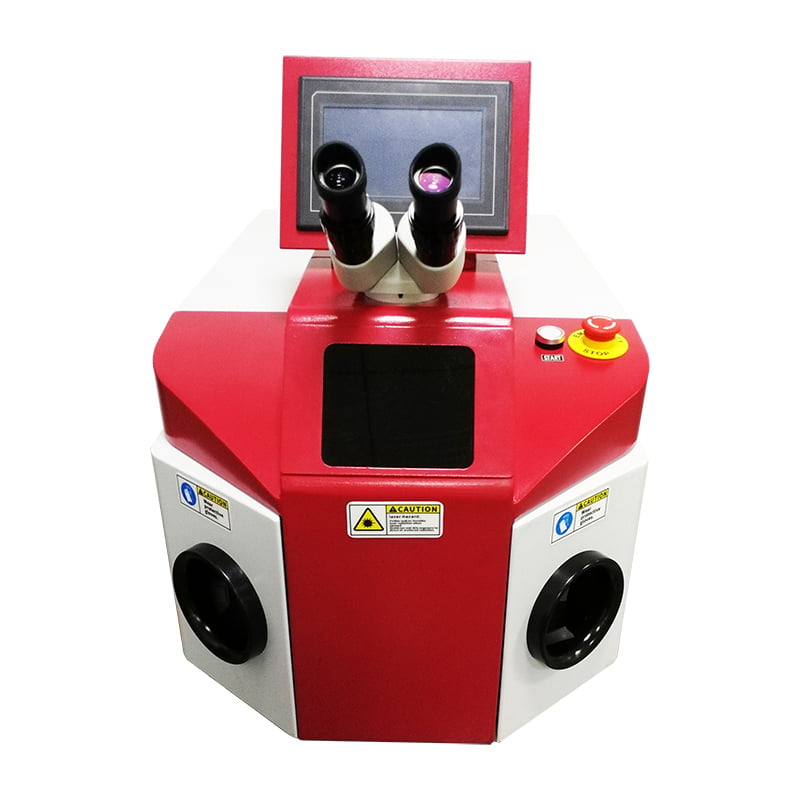

Mini Spot Laser Welder For Jewelry - Image 2

Click to enlarge

Mini Spot Laser Welder For Jewelry

1. Model no.: ZE-LW
2. Laser type: yag
3. Laser power: 200watt
4. Cooling: water cooled
5. Camera: ccd camera
6. Application: gold and silver jewelry, spot welding, repairing, etc.

Categories: Jewelry laser welding machine, Laser machine

Description

Mini Spot Laser Welder For Jewelry Features:

1. Laser welder for jewelry fits jewelry industry of which the products are meticulous and artistic and property is stable.
2. The head cushion and bracket arm cushion are added especially so that long time operation is more comfortable.
3. Large inner space is convenient for setting out of tools and fixtures.
4. Electric focusing device is equipped in working region and laser parameters are applied to adjusting lights for renewal of dust screen.
5. Observation of welding positions is clearer by using adjustable high brightness of LED ring astral lamp and German brand Microscope.
6. More meticulous light points meets requirements of more meticulous welding.

Machine Details:

1. Laser Cavity
Imported ceramic concentrating cavity, strong energy, high temperature resistance.
Convenient replacement of xenon lamp, good airtightness.

2. CCD Microscope
High-definition flat light road CCD microscope.
Equipped with LED shadowless ring lamp, welding position clearly visible.

3. Welding Area
The welding area has a large space, which is convenient for the placement of welding tools and fixtures.
And a welding debris recovery box is installed for easy cleaning and recovery of precious metal welding slag.

4. Pedal Switch
Equipped with pedal switch, which is convenient for operation and improves work efficiency.

Mini Spot Laser Welder For Jewelry

Technical parameters:

Model: ZE-LW
Laser Wavelength: 1064nm
Spotlight Cavity Reflector: Metal Cavity
Max. Laser Power: 200W
Pulse Width: 0.1-20ms
Laser Frequency: 1-50HZ
Adjusting scope of light spot: 0.6-3mm
Aim Operation: Round Point Cursor
Cooling System: Built-in with water cooled
Rated Power: 5.5KW
Lifetime: 3,000,000 times
Power Supply: 220V 50HZ

Application samples:

1. The machine is used in aviation, aerospace, sports products, jewelry, golf head,
2. Medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc,
3. Especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

Mini Spot Laser Welder For Jewelry

FAQs:

Q1: Delivery time?
A1: The delivery time is usually within 5-10 days, except for customization.

Q2: Payment terms?
A2: T/T, West Union, Paypal and so on.

Q3: I don’t know which one is suitable for me?
A3: Please tell me your Max’s work size, Materials and Products thickness

Q5: I don’t know how to use after I receive Or I have problems during use, how to do?
A5: We have a detailed user manual with pictures, you can learn step by step.

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
