Name: Pneumatic Dot Peen Marking Machine For Cylinder | Get Factory-Price Laser Equipment - Free Sample!
Price: 1000.00 USD
Availability: InStock

Description

Pneumatic Dot Peen Marking Machine For Cylinder Features:

1. dot peen marking machine is Cost effective: compressed air is not required, no consumables are required.
2. Efficient: easy to start marking, from a single part to mass production.
3. High speed marking (up to 5 characters per second).
4. All kind of materials, from plastic to hardest steel.
5. Precise: Friendly software interface,easy to edit the marking content as you needs.
6. Simple: Multiple fixture options for optimal marking solutions.
7. Any character size 1mm to 100 mm
8. Serial number (value, tee, elbow, batch, shift)
9. Arabic numerals Alphanumeric (Figure& Letter)
10. Graphics
11. VIN code
12. Time variables (year, month, week, day, shift)
13. Advanced USB interface control technology
14. Taiwan HIWIN guide rods
15. Automatic System Trouble Analysis
16. Japan SMC high-frequency electromagnetic valve
17. Big torque, small angle stepper motor
18. High precision power driver
19. ThorX6 marking software
20. Rotary fixture supported
21. 7″LCD touch screen controller

Advantage:

1. Cost effective: compressed air is not required, no consumables are required.
2. Efficient: easy to start marking, from a single part to mass production.
3. High speed marking (up to 5 characters per second).
4. All kind of materials, from plastic to hardest steel.
5. Precise: Friendly software interface,easy to edit the marking content as you needs.
6. Simple: Multiple fixture options for optimal marking solutions.
7. Innovative: controller and marking head,designed more suit for handling and moving.

Software:

1. Multilanguages, serial No., Arabic numerals, arbitrary figure, incrementing serial No., graphics,
VIN code, time, date, barcode reading marking, ticket, dot matrix, 2D code (two-dimension code),
circumferential parts marking and connected to database marking.
2. Available in a variety of languages (including English, French, German, Spanish, Swedish, Italian,
Portuguese, Cyrillic and Czech), the software also contains features such as serial numbering,
date and time marking and password protection.
3. Support multiple graphics and fonts, compatible with AutoCAD, CorelDraw.

Machine Details:

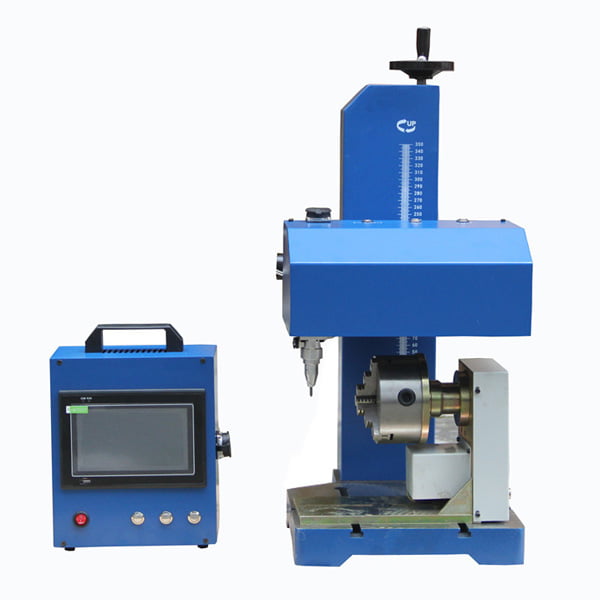

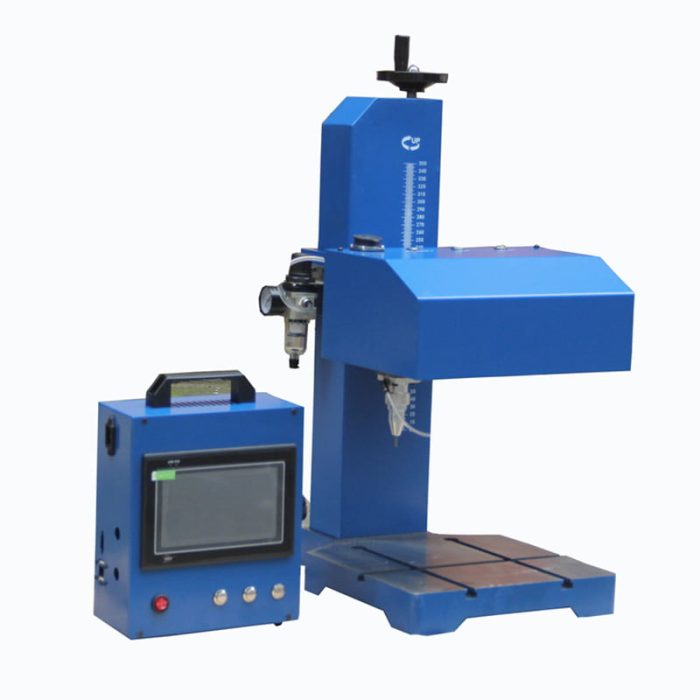

Pneumatic Dot Peen Marking Machine

Technical parameters:

Model: ZE-DM2
Marking speed: 2-5 characters(2x2mm)/s
Stroke Frequency: 300times/s
Marking depth: 0.01 to 1mm (Vary to the material)
Marking contents: Alphanumeric info, Data Matrix or dot matrix 2D codes,
Shift codes, Barcode, Serial Number, Date, VIN Code, Time, Letter, Figure, Logo, Graphics and etc.
Stylus Pin Hardness: HRA92/HRA93
Marking area: 80x40mm,130x30mm,140x80mm,200x200mm
Dimensions: 320x420x740mm
Marking materials: below HRC60 metallic and nonmetallic materials ,
above HRC60 need special stylus
Repeat accuracy: 0.02-0.04mm
Power: 300W
Work voltage: AC 110V 60HZ or AC220V 50HZ
Compressed Air( Pneumatic Air): 0.2-0.6Mpa
Connection: USB and RS-232
Controller: a. 7″LCD touch screen controller b. windows 7&windows XP
Power type: a.Pneumatic b.Electric
Marking directions: up, down, left, right, and the circular arc surface marking

Application samples:

1. Any character size 1mm to 100 mm
2. Serial number (value, tee, elbow, batch, shift)
3. Arabic numerals Alphanumeric (Figure& Letter)
4. Graphics
5. VIN code
6. Time variables (year, month, week, day, shift)
7. Date& Time
8. Barcodes & Reading
9. Ticket number
10. Date Matrix/2D codes/ Matrix size: 5 x 7, 9 x 13 and continuous line
11. Logos marking
12. Special symbols
13. Database connection marking

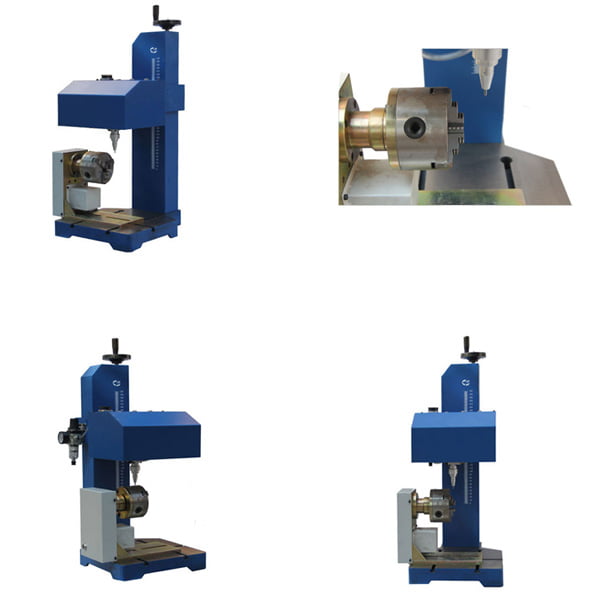

Pneumatic Dot Peen Marking Machine

FAQs:

1. What if you don’t know how to use the machine?
We have a full set of teaching videos, start with a zero experience, also can provide training
through teamviewer or other software, video calling, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn

2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2 or 3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code

3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Pneumatic Dot Peen Marking Machine For Cylinder”

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
