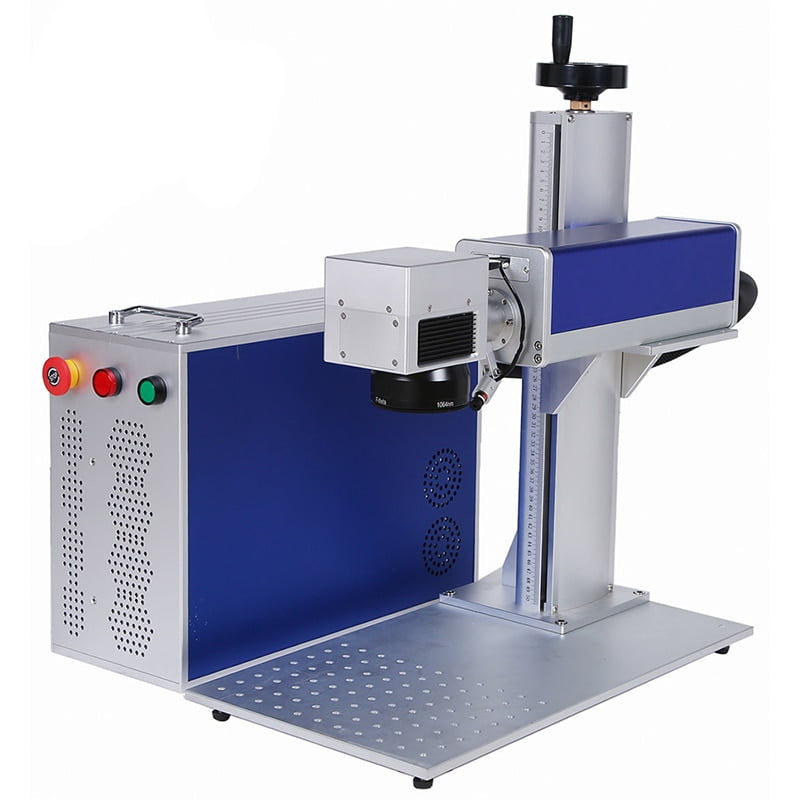

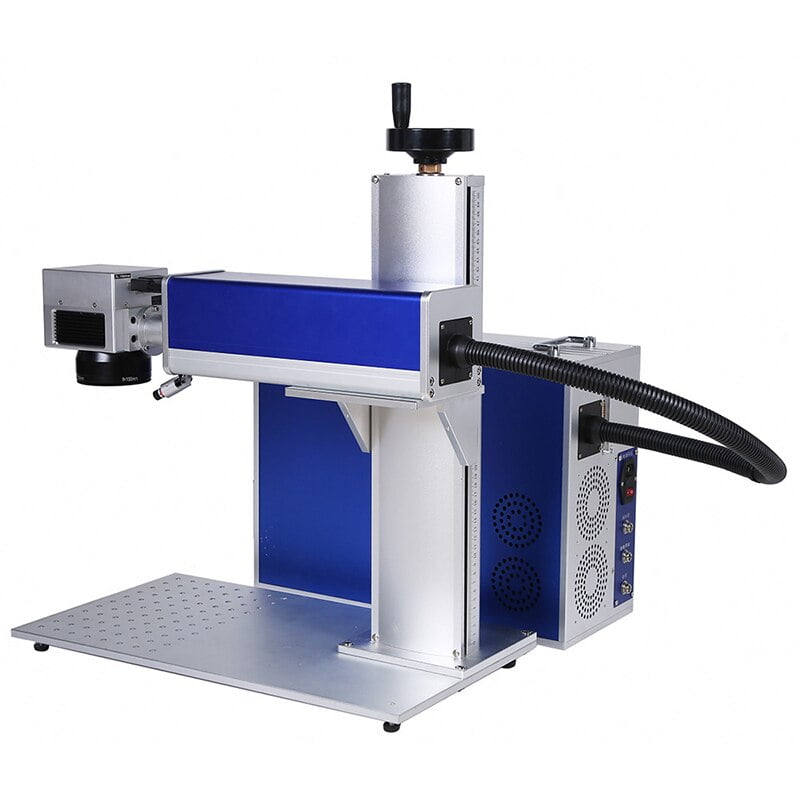

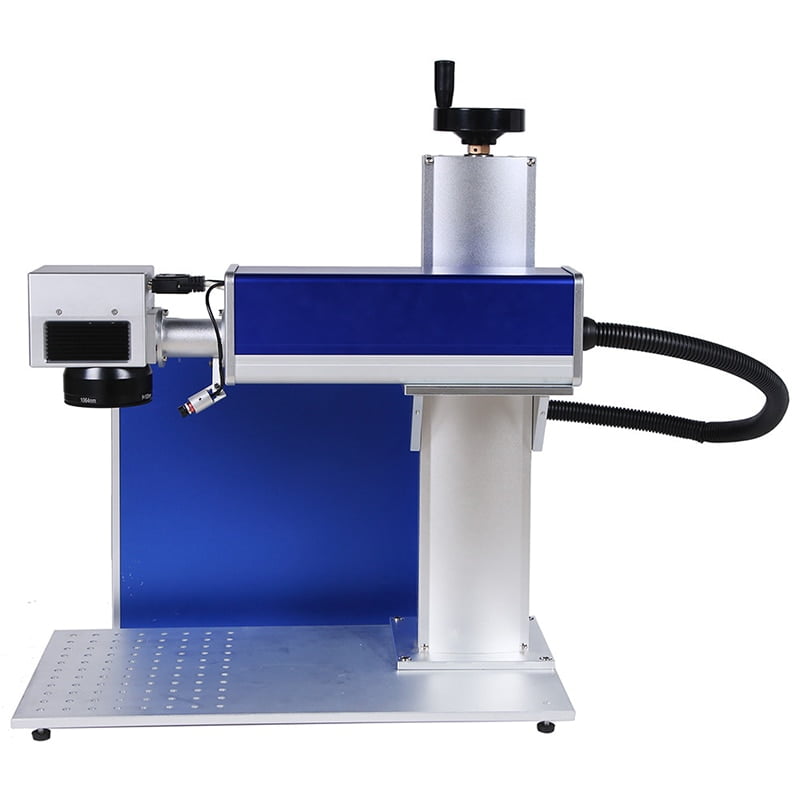

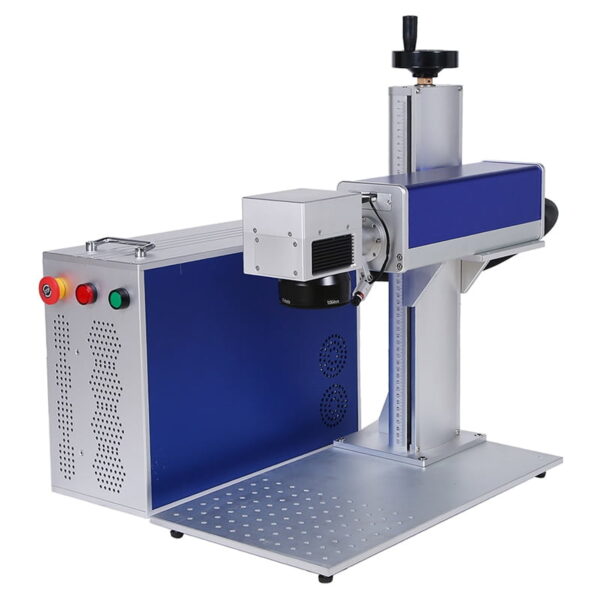

Steel Laser Marking Machine 30W Features:
1. Steel Laser Marking Machine 30W Raycus can adjust the height.
2. Adapt to marking objects of different height.
3. This black handle can be folded for easy carrying.
4. Fiber laser marker can have a variety of plugs, such as EU, UK and US .

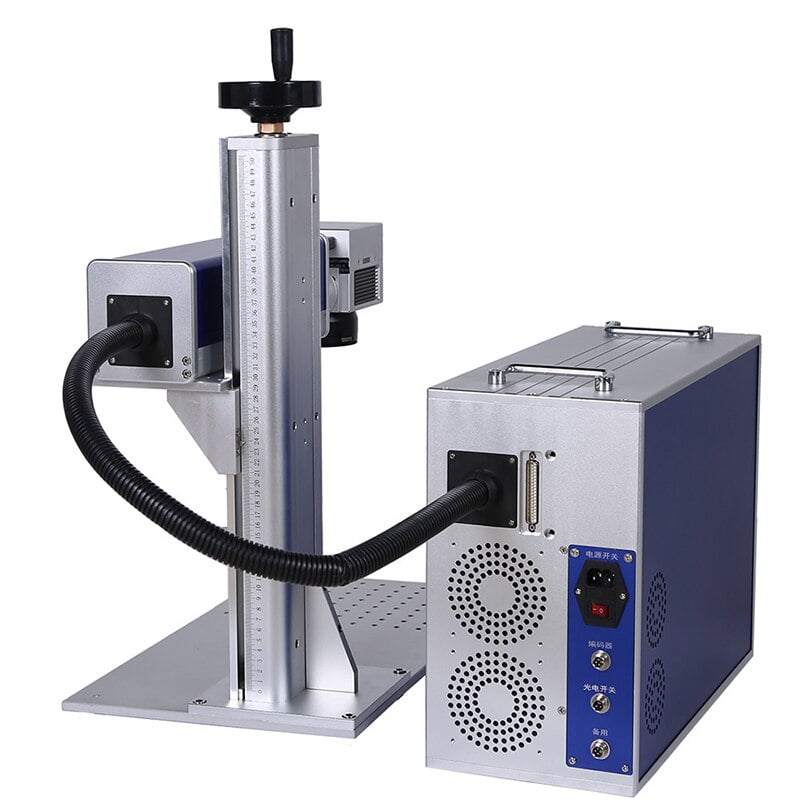

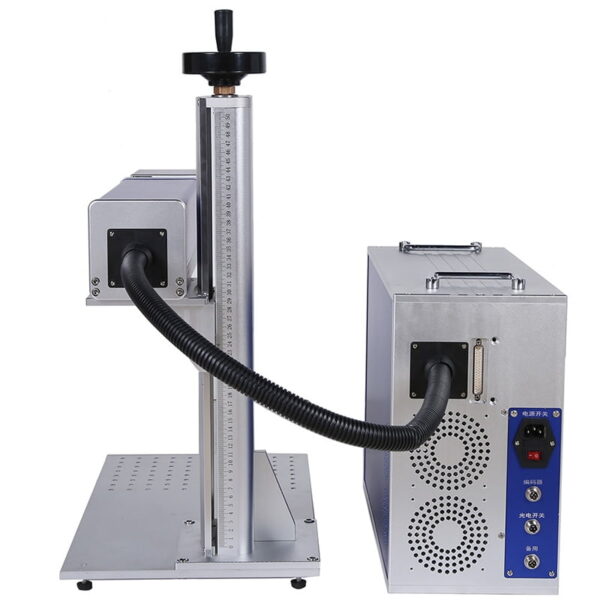

5. The black channel has yellow optical fiber cable, which is the uniqueness of this product.
6. The red and green buttons below are the power buttons.
7. This part is the field len of optical fiber laser marking machine.
Technical parameters:
Laser wavelength | 1060nm |
laser power | 20W or 30W or 50W |
Laser type | Pulse or continuous |
Marking depth | Up to 0.5mm depending on material |
Marking speed | ≤7000mm/s |
Minimum characters | 0.15mm |
Minimum line width | 0.012mm |
Repeatability | ±0.002 |
Marking range | Standard configuration: 100mmx100mm |
Operating life | Laser operation > 100000 hours |
External dimension | 450 mm x 540 mm x 800 mm weight 25 kg |
Worktop | 320 mm x 200 mm 30 kg |
Lifting height | Lifting 550, printable workpiece height less than 280mm. |
Cooling system | Built in air cooling |
operating system | WinXP/Win7 |
Graphic conversion | Provide CAD, CorelDRAW, CAXA file conversion |
Use environment | Temperature: – 20 ° C- 45 ° C, relative humidity 80% |
Machine detail pictures:
Top Brand Fiber Laser Source:
1. The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus/ Jpt/ Max are all the industrial marking and micromachining laser.
2. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter.
3.It can be widely applied in the
fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude.
High Speed Galvo Laser Head
1. Sino-galvo high-speed galvanometer scanner.
2. Professional and long life time.
3. With more precision for laser beam
4. Two red dots for easier focus
High Light Transmittance Optical Lens
1. High light transmittance optical lens
2. With different size from 70x70mm ~300x300mm.
3. wavelength or other brand
Ezcad Control Board And Software
1. EzCad Card enables real-time control of scan system and lasers over a standard USB host interface.
2. Customers can integrate complete machinery easily over the EzCad Card due to its compactness and I/O capabilities.
3. Fast response times and short execution cycle times make the EzCad Card perfectly suitable for high performance applications.
4. It can load marking file via a removable MMC memory card.
Application Samples:
1. Jewellery, Keyboards of cell phone, Auto parts, Electronic components,
2. Electronic appliance, Communication apparatus, sanitary wares, buckles,
3. Kitchenware, Sanitary equipment’s, Hardware tools,
4. Knife, Glasses, Clock, Cooker, Stainless steel products etc.
FAQs:
1. What if you don’t know how to use the machine?
We have a full set of teaching videos, start with a zero experience, also can provide training
through teamviewer or other software, video calling, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn
2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2 or 3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code
3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one
