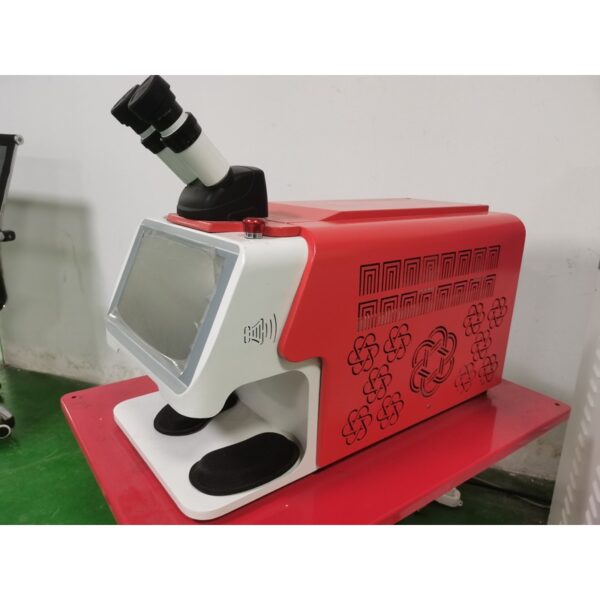

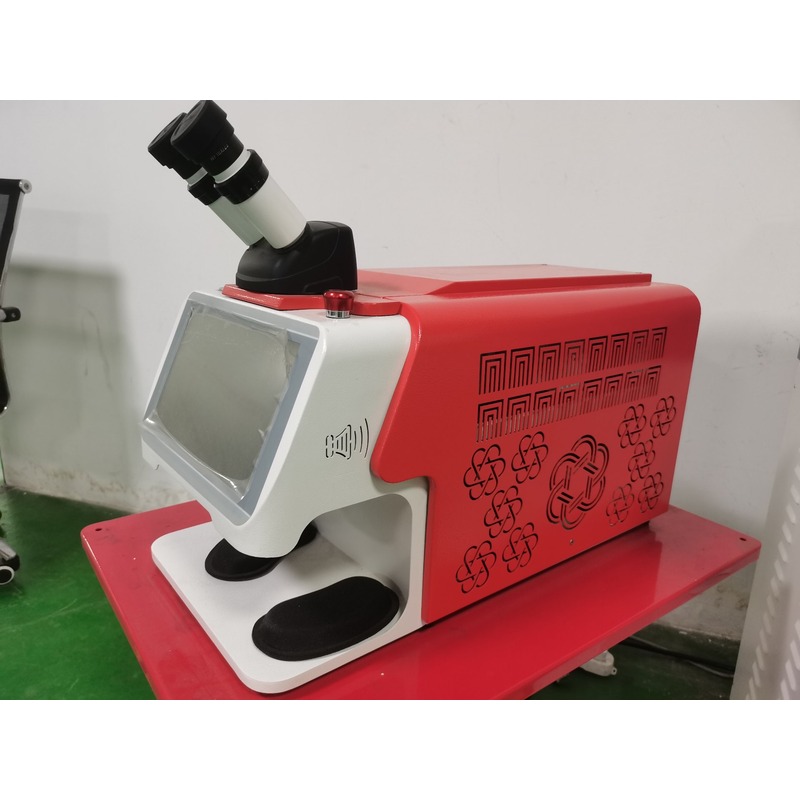

Desktop Jewelry Laser Welding Machine 100W 200W

Description

The desktop jewelry laser welding machine is a compact, precision laser welding system designed for jewelry manufacturers, goldsmiths, repair shops and dental labs. Available in 100W and 200W laser power, it welds and repairs gold, silver, titanium, stainless steel, copper, nickel and aluminum with minimal heat input and no deformation.

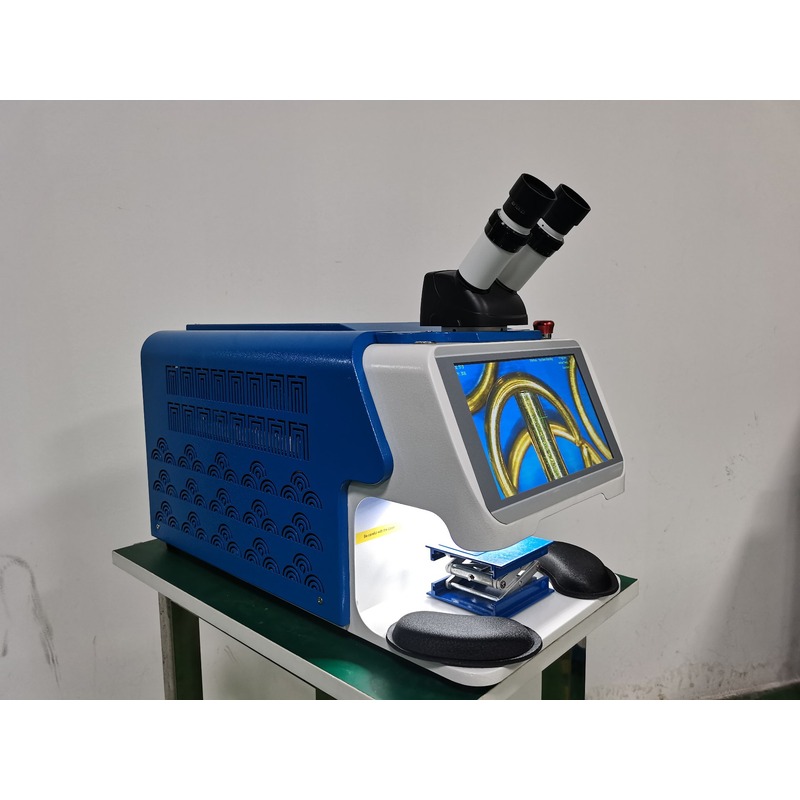

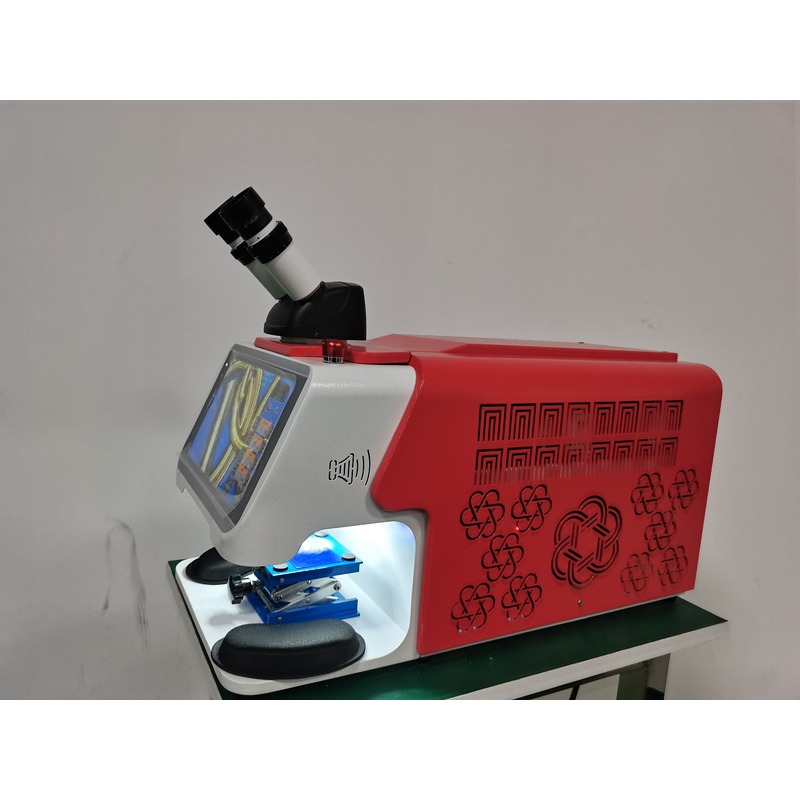

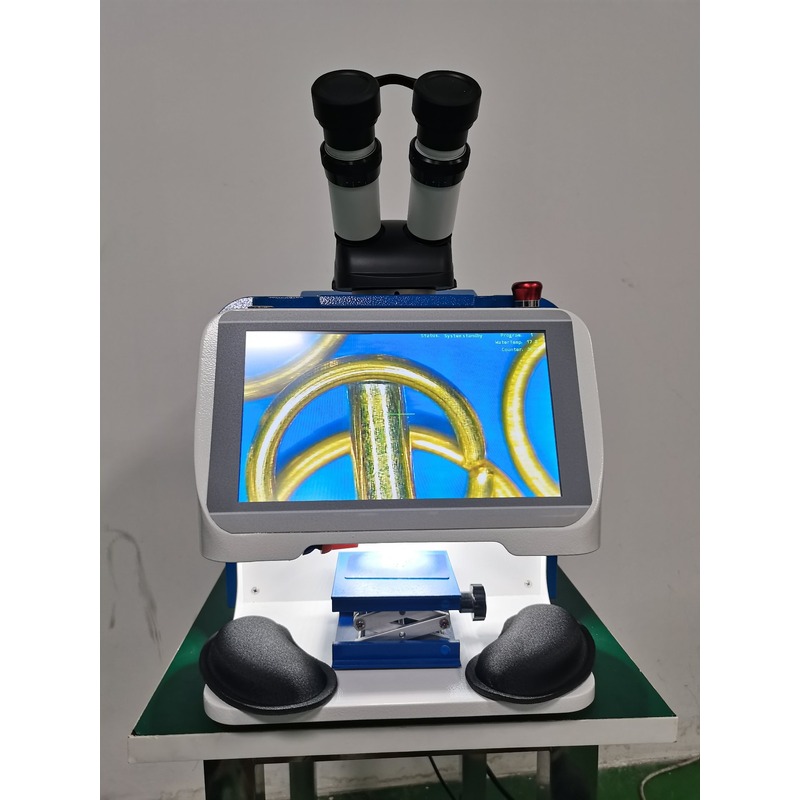

Equipped with a binocular microscope and combined CCD camera system, the operator watches the weld point magnified on the built-in touchscreen in real time, ensuring pinpoint accuracy even on tiny rings, necklaces, prongs and eyewear frames. The ergonomic design with two armrests and adjustable worktable allows hours of comfortable, fatigue-free operation.

Machine Details:

100W / 150W / 200W laser power options for different wall thickness and materials
Binocular microscope + CCD combined aiming and positioning system

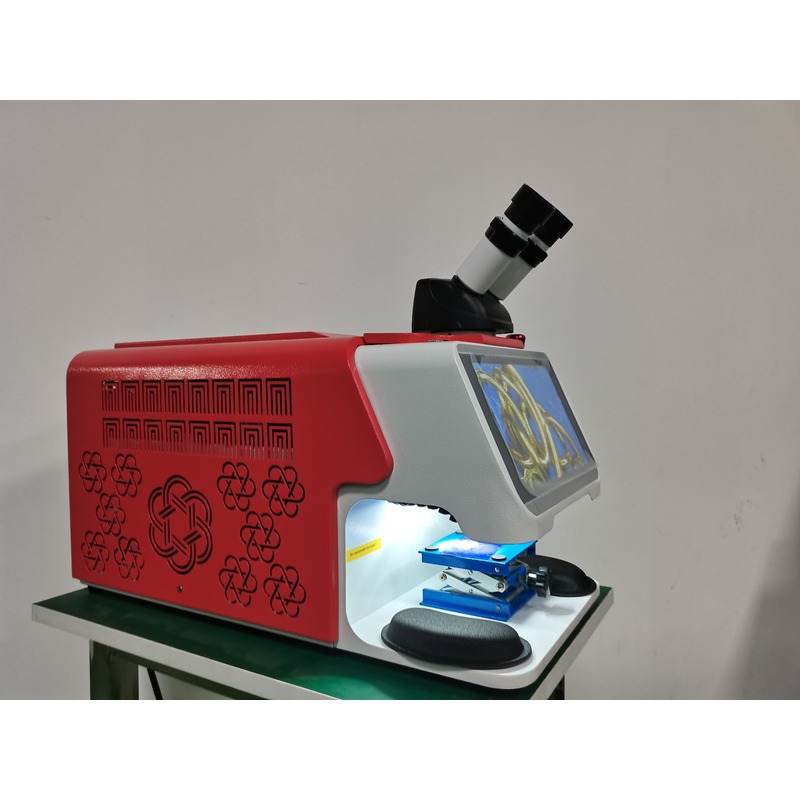

Built-in LED illumination chamber for clear view of the weld area

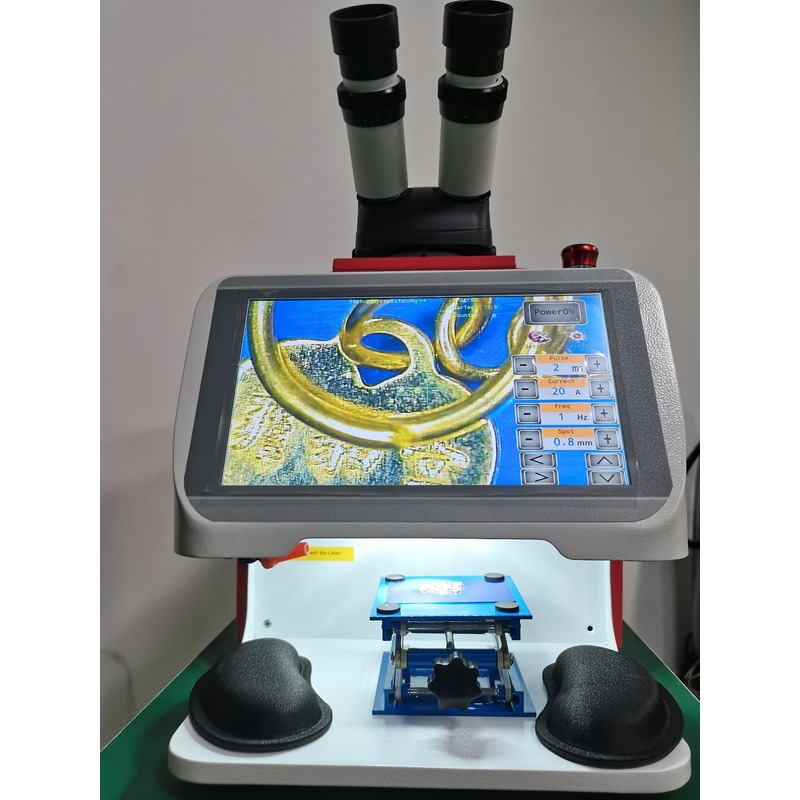

Touchscreen control: pulse width, frequency, spot size adjustable on screen

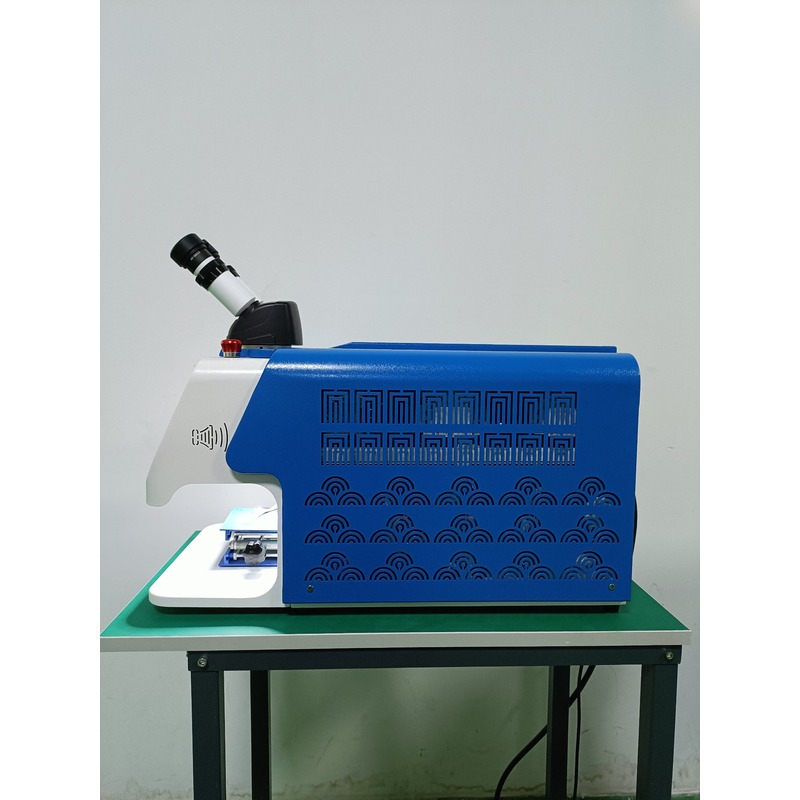

Compact footprint (from 54×29×29 cm), ideal for small workshops and counters
Multi-language interface: English, Russian, French, Korean, Portuguese (customizable)

Technical parameters:

Laser Power	100W / 150W / 200W
Laser Wavelength	1064mm
Voltage Regulating (Customized)	100-400VDC
Pulse Width	0.1-20ms
Beam Diameter	0.2-2mm
Laser Welding Working Distance	100-300mm
Aiming and Positioning	Microscope + CCD (combined)
Power Consumption	≤5KW (100W) / ≤6KW (150W-200W)
Machine Dimension	54×29×29cm (100W) / 56×29×29cm (150W) / 75×54×58cm (200W) / 58×35×29cm (200W compact)
Machine Net Weight	28KG / 35KG / 80KG / 39KG
Package Size	64×52×50cm / 64×52×50cm / 87×52×55cm / 64×50×53cm
Gross Weight	40.5KG / 48KG / 110KG / 50KG
Language	English, Russian, French, Korean, Portugal (Customized)

Application Samples:

This desktop laser welder is good at welding and repairing jewelry, gold, necklace, glasses, dental work and more. Materials for welding and repairing include gold, silver, aluminum, stainless steel, titanium, nickel, copper, etc. Typical jobs: resizing rings, re-tipping prongs, repairing necklace chains, closing solder joints on eyewear, dental appliance repair and filling porosity on castings.

FAQs:

Q: What is the difference between 100W and 200W?
A: 200W delivers deeper penetration and larger spot welding for thicker gold bars and bangles; 100W is enough for thin chains, rings and daily repair work.

Q: Does it need special installation?
A: No. It works on a standard desk with 100-400VDC power regulation (customized to your local voltage). Just plug in, focus and weld.

Q: Is training provided?
A: Yes. We provide operation video, English manual and online training. The touchscreen supports multiple languages.

Q: What is the lead time?
A: Usually 3-7 working days for standard models. Contact us for a free quote within 24 hours.
