Galvo Co2 Leather Laser Engraving Machine - Image 1

Click to enlarge

Galvo Co2 Leather Laser Engraving Machine

Galvo Co2 Leather Laser Engraving Machine

1. Model no.: ZE-CL
2. Laser type: rf metal tube 10.6um
3. Laser power: 60watt, 100watt
4. Cooling: air cooled
5. Payment: T/T
6. Application: non-metal materials as apparel, leather, rubber, wooden board, etc.

Categories: Co2 laser marking machine, Laser machine

Description

leather laser engraving machine Galvo Co2 Leather Laser Engraving

Galvo Co2 Leather Laser Engraving Machine Features:

1. leather laser engraving machine is high reliability, long continuous running, clear and complete marking result
2. Compatible with a lot of software, no-touch processing for collecting and making various labels
3. No impact on the surface of original products (high resolution remained)
4. Suitable for engraving on all kinds of materials, easy to install and convenient to maintain

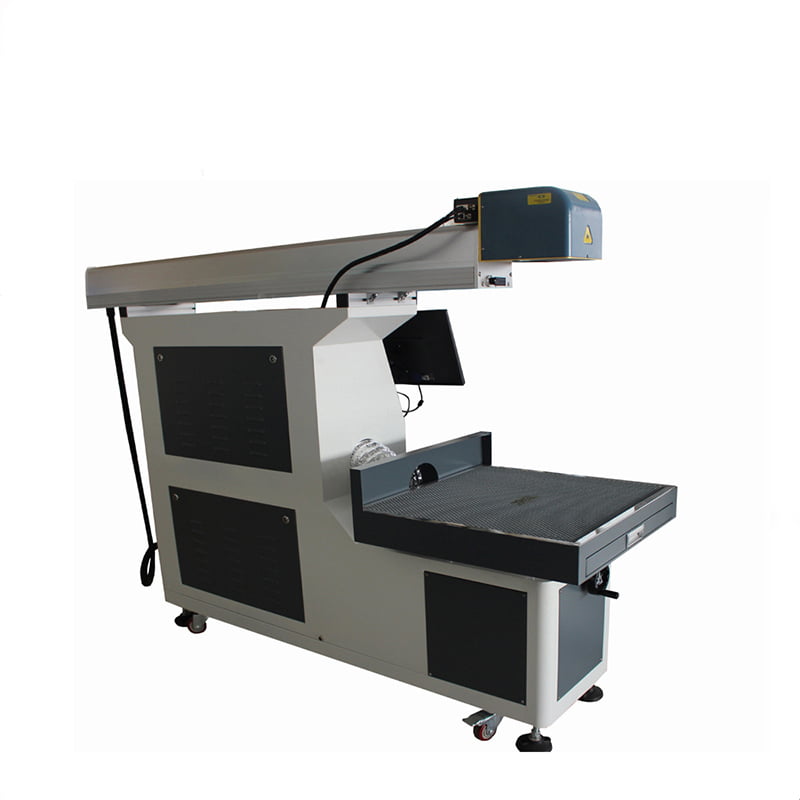

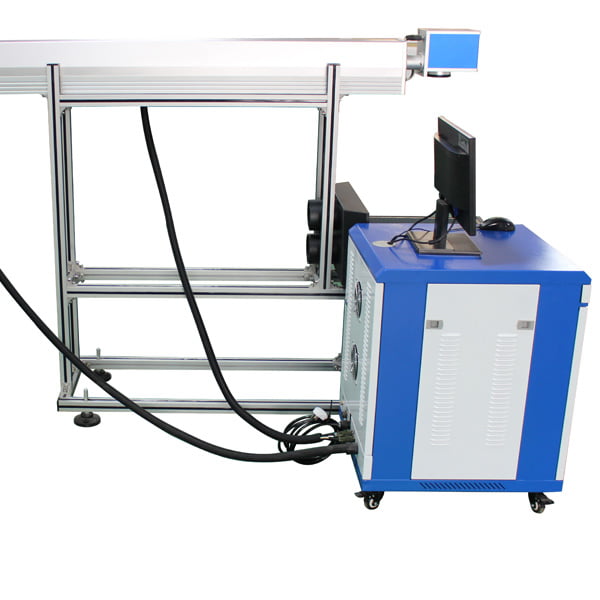

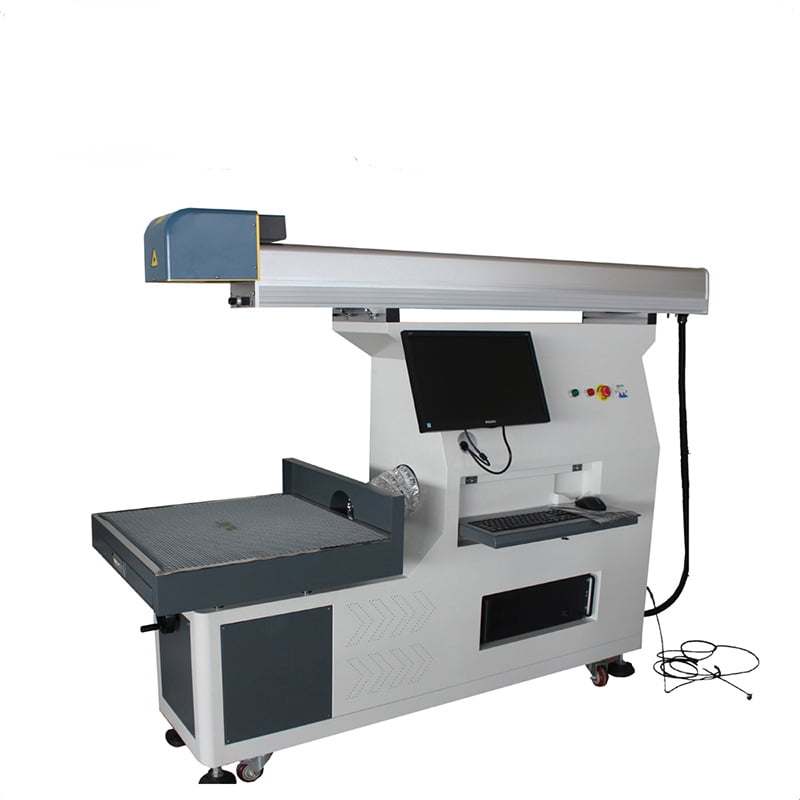

Machine detail pictures:

Galvo Co2 Leather Laser Engraving

Machine Main Parts:

1. The Co2 galvo lasers has superior laser beam and uniform power density, The laser power output is stable.
2. Adopt the advanced operating system with fast date processing speed and multi-functional operation interface.
3. It can work with quick speed, small volume, good stability.
4. High efficiency for photoelectric conversion, compact in structure.

Galvo Co2 Leather Laser Engraving

Technical parameters:

Model: ZE-CL
Laser power: 60watt, 100watt
Laser type: CO2 laser (metal seal) or glasses tube
Lazer head: high speed galvo head
Software: Ezcad
Machine power: 1.5KW-4KW
Minimum character: 1mm
Repeat position accuracy: ±0.04mm
Marking speed: 7000mm/s
Marking scope: 110*110mm (optional)
Operating voltage: AC220V/11V,30A ,50Hz/60Hz
Cooling type: Air or water cooling and protection system
Acceptable graphic format: PLT, PCX, DXF, BMP, AI

Application samples:

1. The machine can mark non-metal materials as apparel, leather, rubber, wooden board,
2. Bamboo, organic glass, ceramic tile, plastics, marble, jade, crystal, cloth, etc.
3. It is often used as wood laser marking, bamboo marking and engrave, etc.

Galvo Co2 Leather Laser Engraving

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
