Desktop Jewelry Laser Welder For Sale - Image 1

Click to enlarge

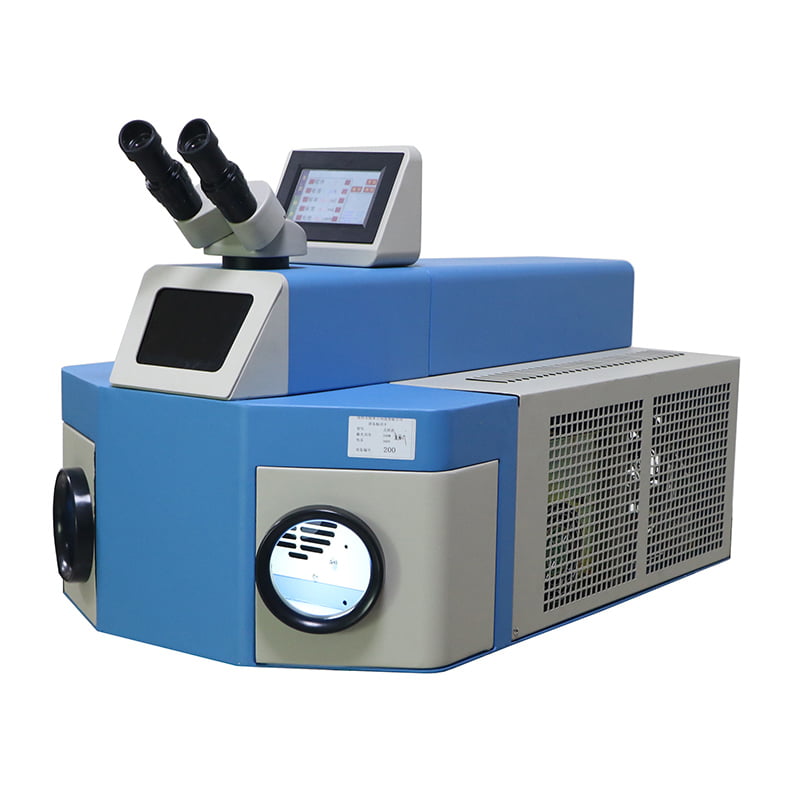

Desktop Jewelry Laser Welder For Sale

1. Model no.: ZE-LW
2. Laser type: yag
3. Laser power: 150watt
4. Cooling: water cooled
5. Camera: ccd camera
6. Application: gold and silver jewelry, spot welding, repairing, etc.

Categories: Jewelry laser welding machine, Laser machine

Description

Desktop Jewelry Laser Welder For Sale Features:

1. Jewelry laser welder for sale, Adopt imported ceramic concentrating cavity, high reflectivity, and long service life.
2. The whole machine is with ergonomic design, more suitable for the jewelry industry.
3. the product is fine, beautiful, with stable performance, suitable for long-term continuous work needs.
4. The internal space is large, which is convenient for the placement of laser spot welding tools and fixtures.
5.the welding debris recovery box is installed to facilitate cleaning and gold welding residue recovery;
6. LED ring type shadowless lamp, observe the workpiece without shadow, with high-definition parallel light path microscope.
7. High-magnification beam expansion system, to obtain a more precise spot, to meet the needs of fine laser spot welding.

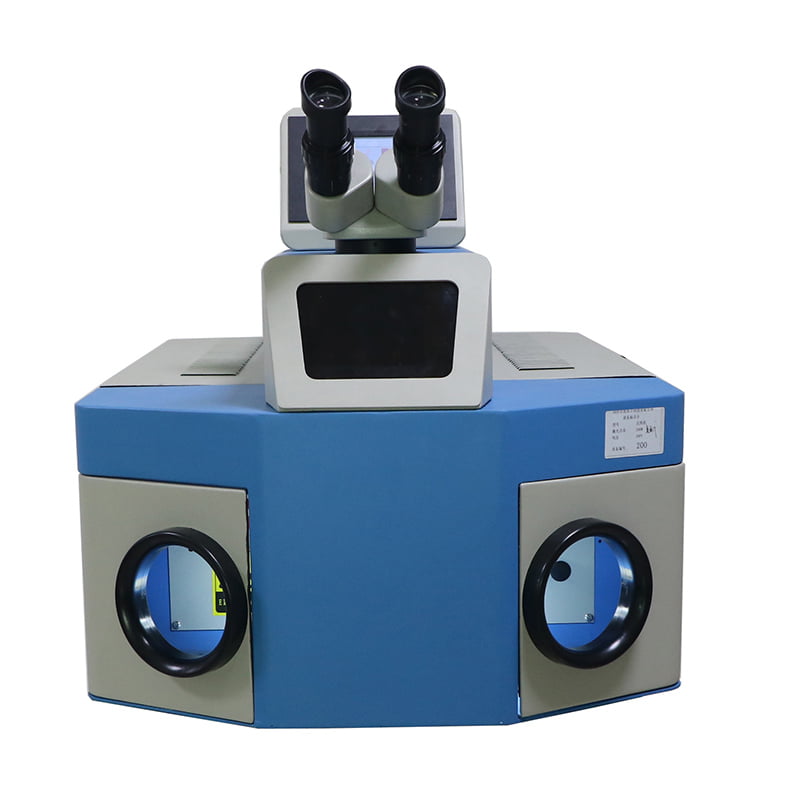

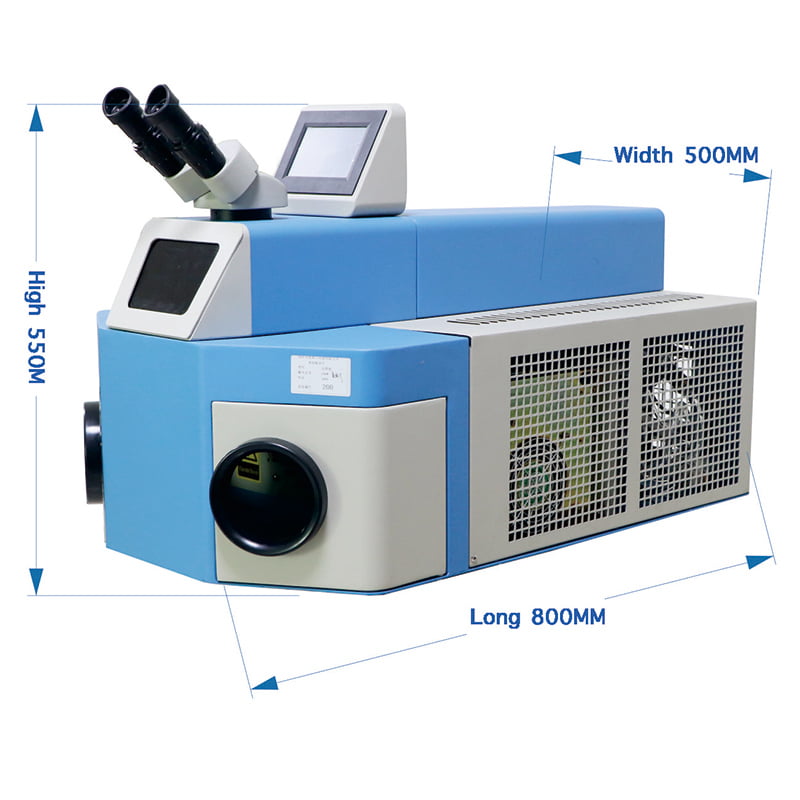

Machine details pictures:

jewelry laser welder for sale

Jewelry Laser Welder For Sale

jewelry laser welder for sale

Technical parameters:

Model: ZE-LW
Laser Wavelength: 1064nm
Spotlight Cavity Reflector: Metal Cavity
Max. Laser Power:150W
Pulse Width: 0.1-20ms
Laser Frequency: 1-50HZ
Adjusting scope of light spot: 0.6-3mm
Aim Operation: Round Point Cursor
Cooling System: Built-in with water cooled
Rated Power: 5.5KW
Lifetime: 3,000,000 times
Power Supply: 110V/220V 50HZ

Application samples:

1. The machine is used in aviation, aerospace, sports products, jewelry, golf head,
2. Medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc,
3. Especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

Jewelry Laser Welder For Sale

FAQs:

Q1: Delivery time?
A1: The delivery time is usually within 5-10 days, except for customization.

Q2: Payment terms?
A2: T/T, West Union, Paypal and so on.

Q3: I don’t know which one is suitable for me?
A3: Please tell me your Max's work size, Materials and Products thickness

Q5: I don’t know how to use after I receive Or I have problems during use, how to do?
A5: We have a detailed user manual with pictures, you can learn step by step.

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
