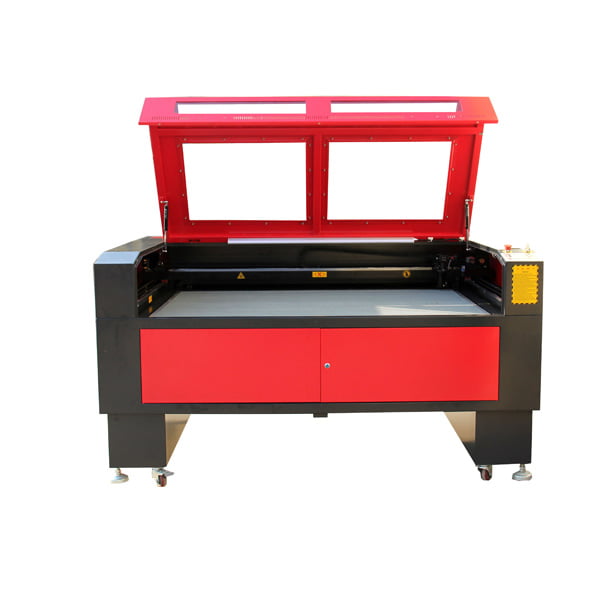

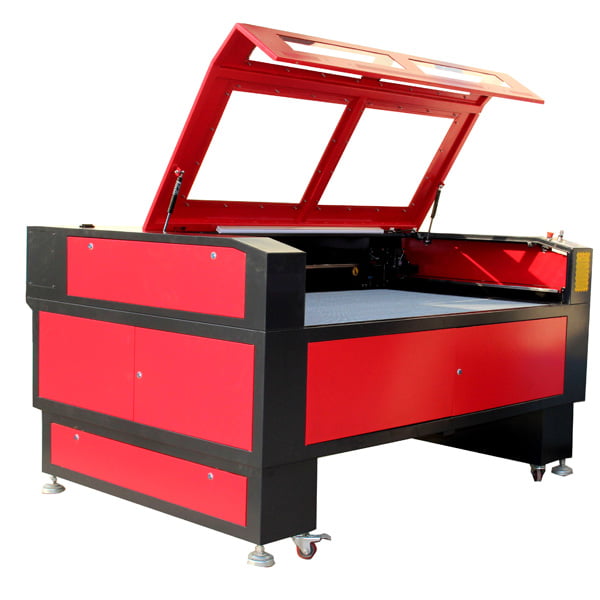

Co2 Laser Cutting Machine For Acrylic

1. Model no.: ZE-C1390
2. Laser type: 10.6um
3. Laser power: 60w, 80w, 100w
4. Cooling: water cooled
5. Payment: T/T(optional)
6. Application: Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, etc.

Categories: Co2 laser engraving machine, Co2 Laser Cutting Machine, Laser machine

Description

Co2 laser cutting machine

Co2 Laser Cutting Machine For Acrylic Features:

1. Smooth and Precise Engraving and Cutting.
2. Output from RDdraw directly,also supports CoreDraw and Auto CAD .
3. Optimization of mechanical and electrical design.
4. More friendly control panel with Color Screen.
5. English, French, German, Italian, Spanish and more languages updating.
6. Separation of cutting up to 256 Colors.
7. One key to install, more convenient.
8. Use virtual array list and additional off-cut graph to realize the off-cut function.
9. Machines with feeding devices can realize the cyclical model of working-feeding-working.
10. USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.
11. Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
12. Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style

Machine Details:

Co2 Laser Cutting Machine For Acrylic

Technical parameters:

Model: ZE-C1390
Control system: DSP
Working size: 6040, 1060, 1390, 1625
Laser tube type: CO2 Glass sealed laser tube
Laser power: 60W/80W/100W
Driver type: Micro Stepping Motor
Max speed: 1000mm/s
Resolution: 1000 DPI Location precision: 0.01mm
PC Interface: USB2.0 and USB Disk
Software: AutoLaser, LaserCAD, Ruida controller
Package Dimension(L/W/H): 1700* 1000*1200 (mm)
Package: Standard Wooden case for export

Application samples:

1. Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting,
2. industrial prototyping, industrial marking, signmaking, medical part marking, aerospace, architectural modeling,
3. specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding,
4. engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys,
5. finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates.

Co2 Laser Cutting Machine For Acrylic

Machine accessories:

1. Tools
2. Power line
3. Turn the line
4. Rubber bar
5. CD
6. Water pump
7. Suction fan
8. Water Iine
9. Double face dadhesive
10. Spare line
11. User Manual
12. Air pump

Co2 Laser Cutting Machine For Acrylic

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
