Name: Laser Marking Machine 20W Handheld Design | Get Factory-Price Laser Equipment - Free Sample!
Price: 5500.00 USD
Availability: InStock

Description

Laser Marking Machine 20W

Laser Marking Machine 20W Handheld Design Features

1. Laser Marking Machine 20W is Small size, easy to transport and save transportation cost.
2. Raycus laser quickly mark black in stainless steel, faster than ordinary laser.
3. The laser can be added the rotary attachment, smoke filter device.
4. large adjustable frequency range.
5. Suitable for engraving all metal materials and some plastic materials.

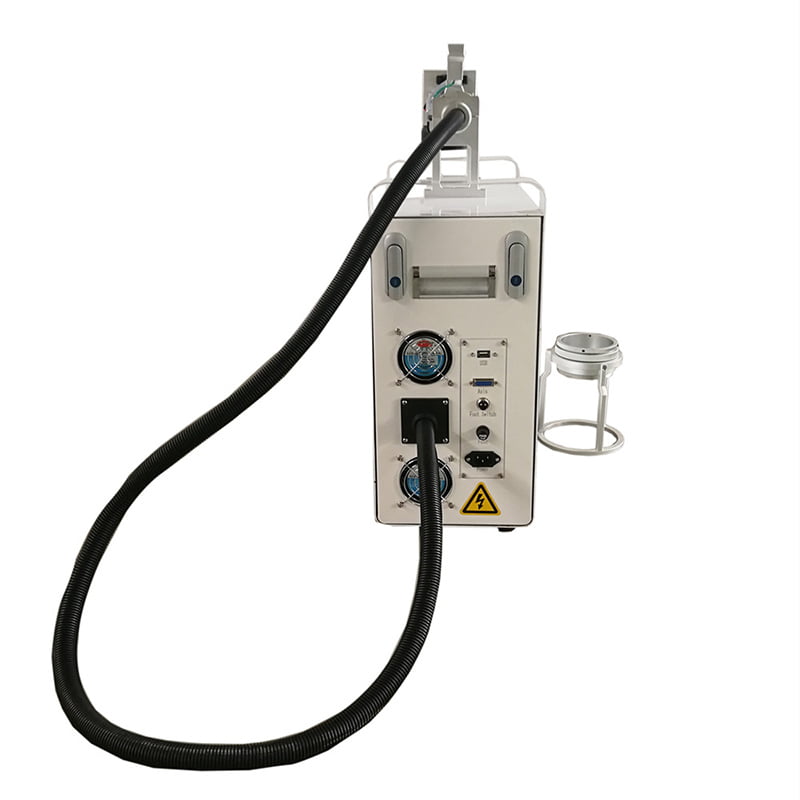

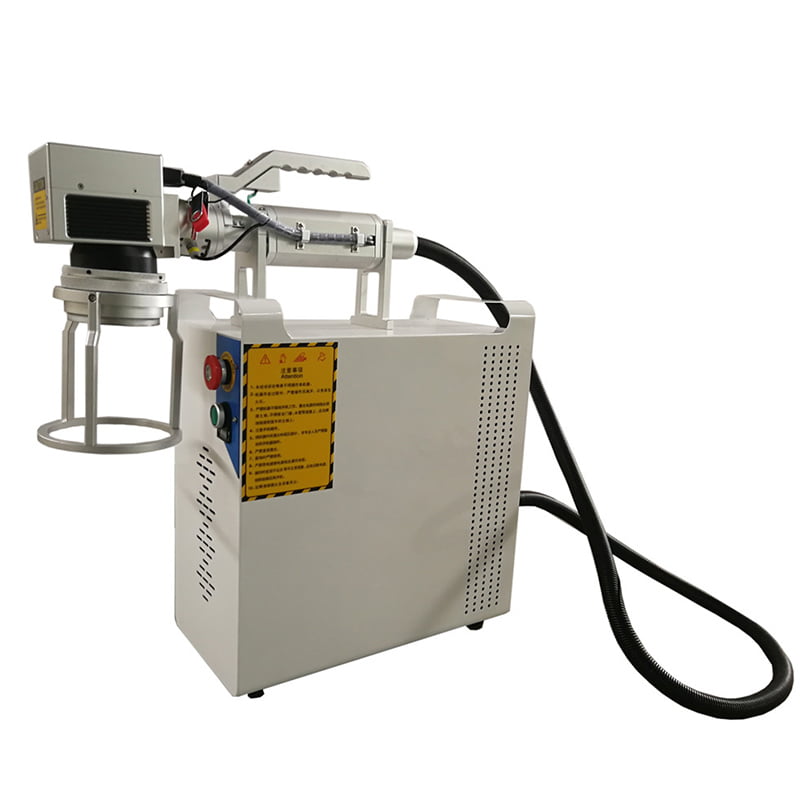

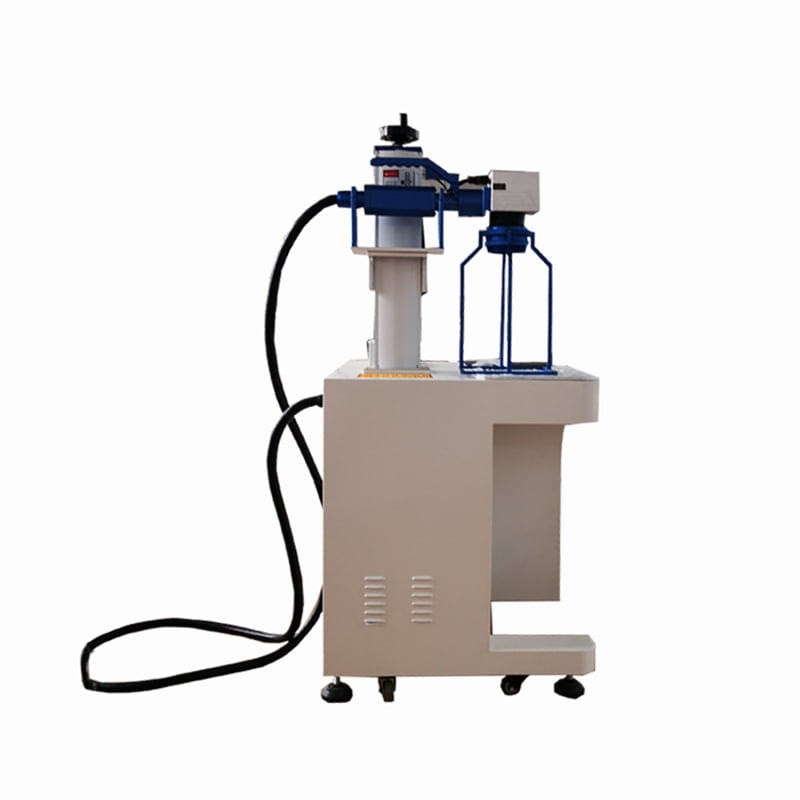

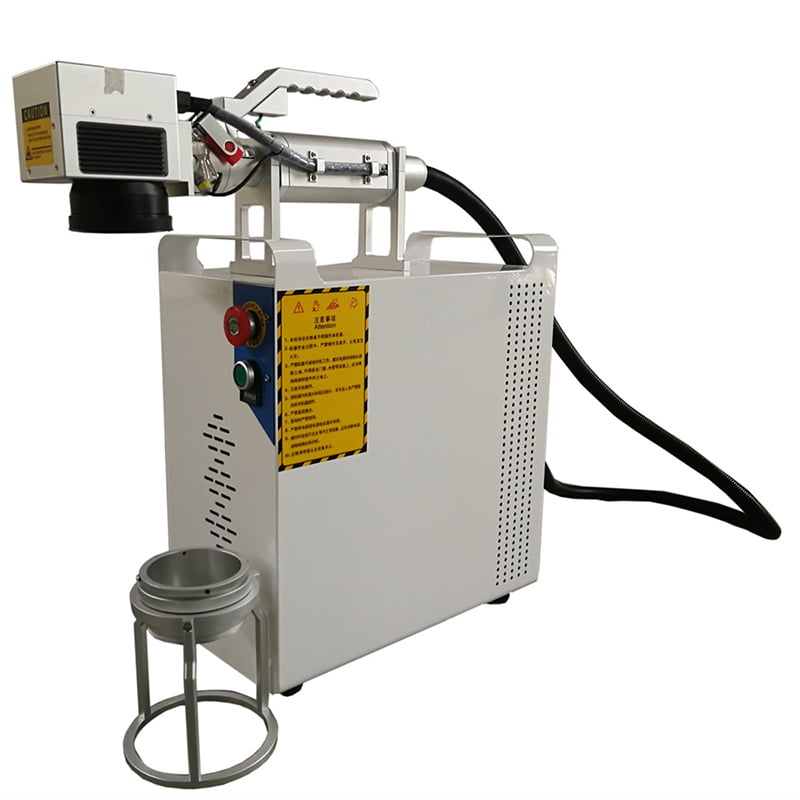

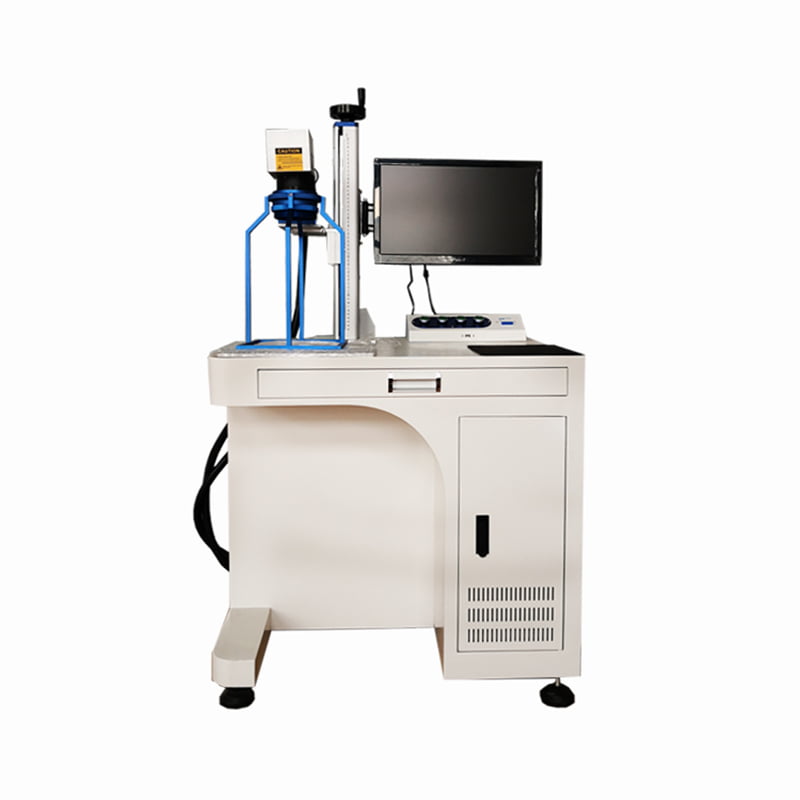

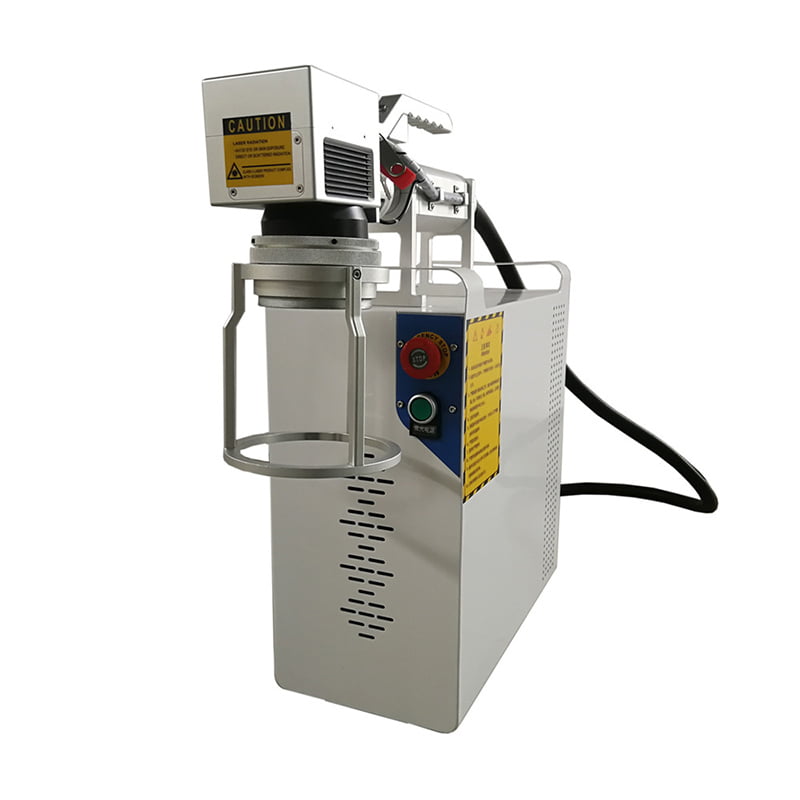

Machine detail pictures:

Laser Marking Machine 20W

Technical parameters

Model : ZE-FL
Power : 50W(optional)
Lazer Type : fiber laser q-switched
Laser Wavelength : 1064nm
Frequency:30-60kHZ
Standard Marking Area :110mmx110mm(optional)
Marking Depth : ≤0.2mm
Marking Linear Speed : ≤7000mm/s
Minimum Linear Width : 0.01mm
Minimum Character : 0.15mm
Operating System : WINDOWS 98/2000/XP/VISTA/7/8/10
Repeat Positioning Accuracy : ±0.002mm
Software : EZCAD2.0
Rated Power : 500W
Graphic format supported : PLT, PCX, DXF, BMP, AI, etc.
Operating Voltage : 110V/220V
Cooling mode : Air cooling

Split type, long life time for this portable fiber laser marking machine

1. split type, long life fiber laser q-switched fiber laser marking machine,

2. the machine can get small laser beam with high precision.

3. With Air cooling, long time working will not damage machine quality

Top brand fiber laser source:

1. The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus/ Jpt/ Max are all the industrial marking and micromachining laser.
2. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter.
3.It can be widely applied in the
fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude.

High speed galvo laser head

1. Sino-galvo high-speed galvanometer scanner.
2. Professional and long life time.
3. With more precision for laser beam
4. Two red dots for easier focus

Laser Marking Machine 20W

High light transmittance optical lens

1. High light transmittance optical lens
2. With different size from 70x70mm ~300x300mm.
3. wavelength or other brand

Laser Marking Machine 20W

Ezcad control board and software

1. EzCad Card enables real-time control of scan system and lasers over a standard USB host interface.
2. Customers can integrate complete machinery easily over the EzCad Card due to its compactness and I/O capabilities.
3. Fast response times and short execution cycle times make the EzCad Card perfectly suitable for high performance applications.
4. It can load marking file via a removable MMC memory card.

Application Samples:

1. Jewellery, Keyboards of cell phone, Auto parts, Electronic components,
2. Electronic appliance, Communication apparatus, sanitary wares, buckles,
3. Kitchenware, Sanitary equipment’s, Hardware tools,
4. Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Laser Marking Machine 20W

FAQs:

1. What if you don’t know how to use the machine?
We have a full set of teaching videos, start with a zero experience, also can provide training
through teamviewer or other software, video calling, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn

2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2 or 3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code

3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Laser Marking Machine 20W Handheld Design”

FAQs

Are you trading company or manufacturer?

We are factory specializing for more than 10 years,andwe mainly produces laser marking machines, but wecan also provide other laser equipment with veryadvantage price.

l never do importing before, how to import the machine into my country ?

lf you have no experience in importing machines, please contact our customer service, they will answer your specific operations and the fees you need to pay in details.

How to choose the suitable machine for me ?

lf you know nothing about the marking or engraving machine, you have to tell us what you want to do by themachine, and also tell us your budget, so our sales teamwill give you the best recommendations.

When l receive the machine, can someone teachme how to use it?

Yes, of course.we will send you some user manual withthe machine together or via email.If you still not havetime to read it, we will have technical engineer to doremote connect with your laser computer to teach you online.

lf some problems happen to this machine, whatshould l do?

We provide two years machine warranty for lasermarkers. During the two-year warranty, in case anyproblem for the machine, you can get the free repair orexchange service.Just the customer need to pay theshipping cost. Some simple operation questions, we arealso online to give fast answers.

What's consumables of laser marking machine ?

lt does not have consumable parts.lt’s very economicaland cost effective, and maintence-free.

What's package, will it protect the products ?

The large machine will have 3 layers package.For theoutside, we adopt wooden cases free offumigation.Inthe middle, the machine is covered by foam, to protectthe machine from shaking.For the inside layer, themachine is covered by waterproof plastic film.

What's delivery time ?

Commonly,the lead time is within 5-7 working days after receiving the payment.

What payment terms can you accept ?

The most suitable payment for us , like T/T, WesternUnion, Cash etc.For other payment method, pleasediscuss with our sales team.

How is the shipping way ?

We have different shipping method for customer tochoose,for example: Shipping by sea(customer need to pick up themachine at their nearest sea port), Shipping by air (customer need to pick up themachine at their nearest airport), And shipping by Express(it can deliver to customerexactly address)

Package And Shipping

Inner package: waterproof plastic transparent film
Middle package: white foam, to protect the machine from shaking
Outside package: wooded case free of fumigation
According to different customer needs,we could send the cargo by air, sea,and railways
The delivery lead time would be 3-5 days
